Brushing and structuring machine VOLPATO SPO 600 / NEW
No. 04377

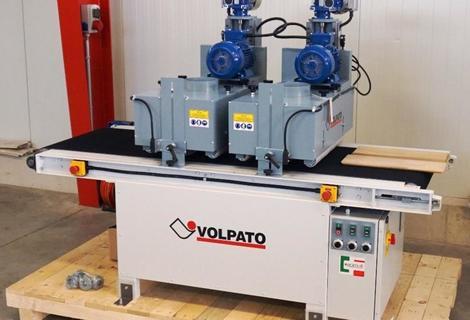

Brushing and structuring machine VOLPATO SPO 600 / NEW
Year of construction 2023, new, immediately available, made in Italy
VOLPATO has been building grinding machines for over 60 years
Working width 600 mm
Machine open at the side for double pass and double grinding width of 1200 mm
Electric height adjustment of both units independently of each other
Maximum grinding height 330 mm (360 mm) depending on brush diameter
both brushes tilt 0-10° (20°)
Maximum diameter of brushes 320 mm
Brush rotation infinitely adjustable 180 - 600 rpm
Change of direction of rotation of the brushes possible

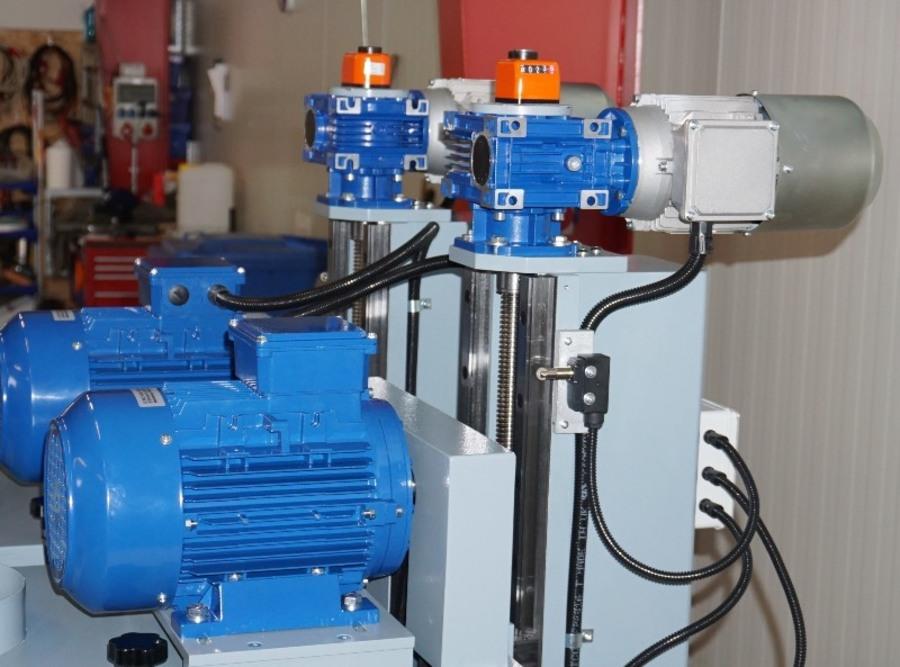

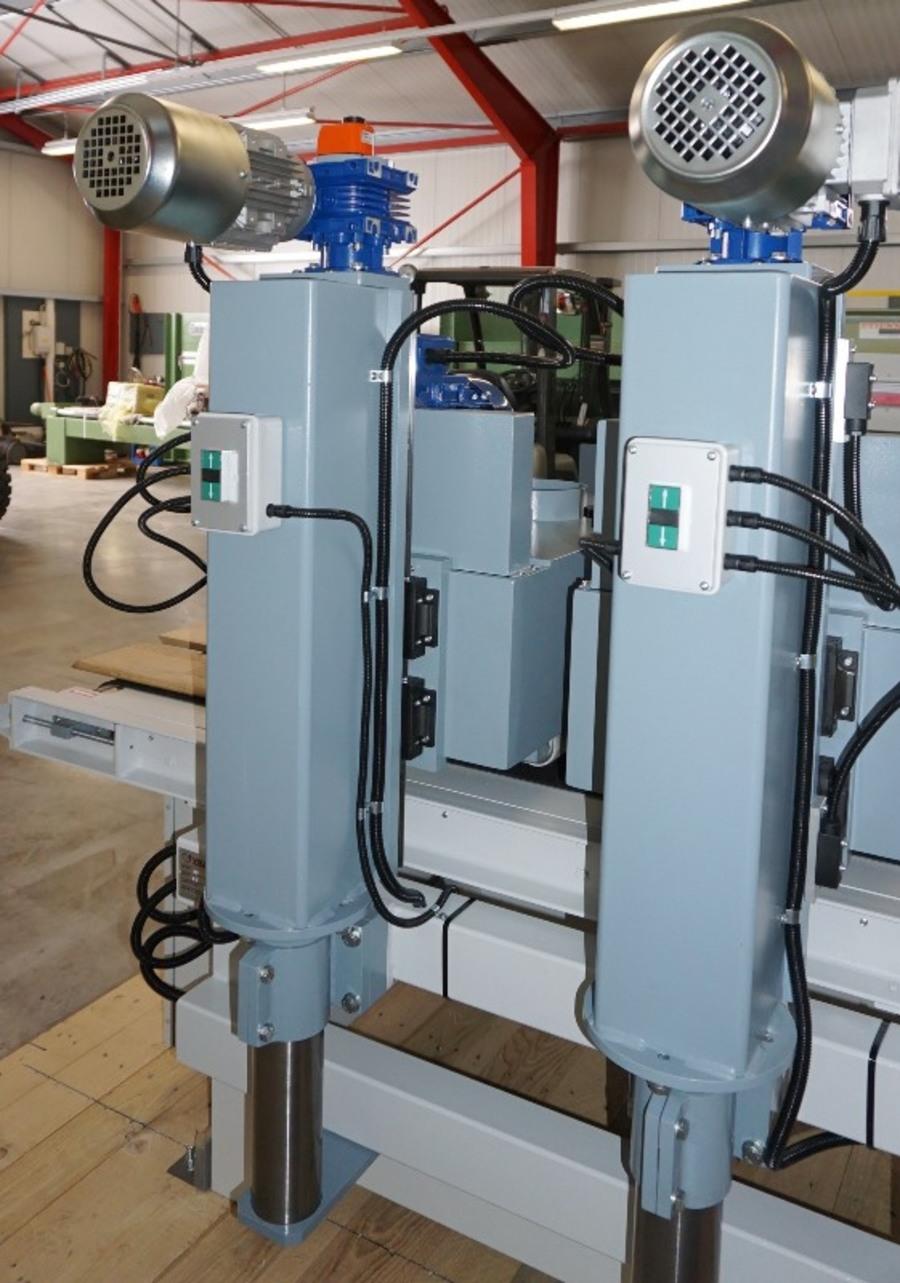

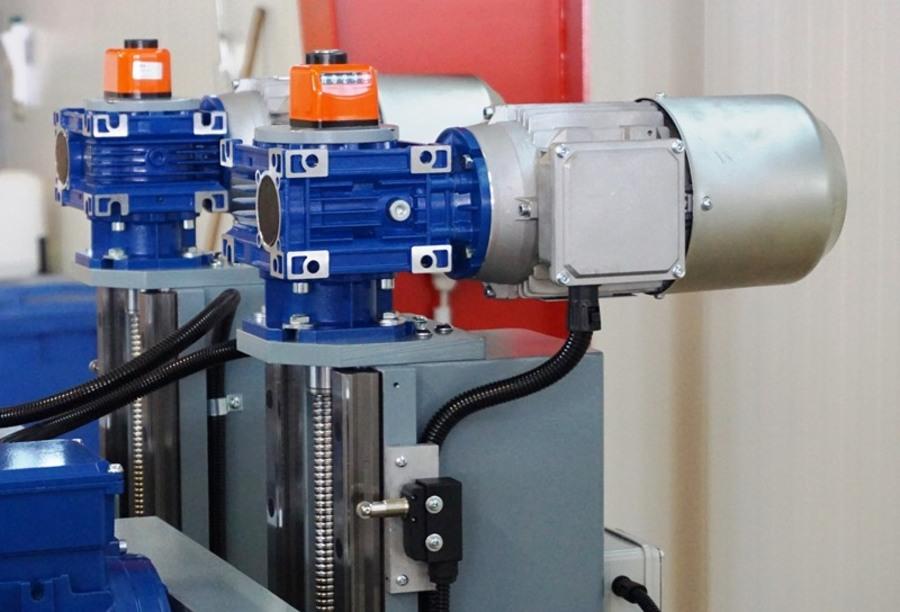

Electric height adjustment 0 - 330 mm with Siko indicators
Brushes are stored on round bars with a diameter of 90 mm each with linear guides

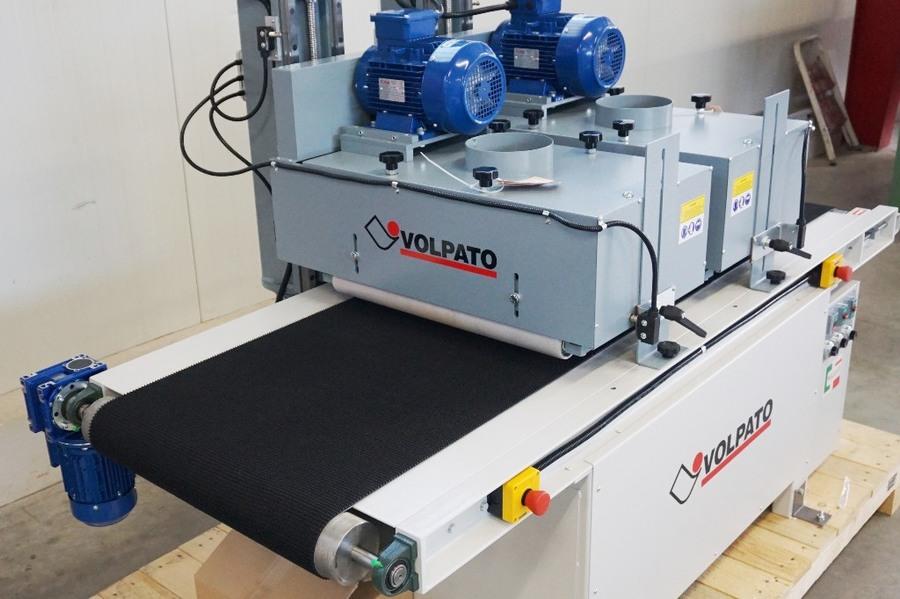

Infinitely adjustable feed speed of the conveyor belt
Table height thanks to adjustable feet 800-850 mm

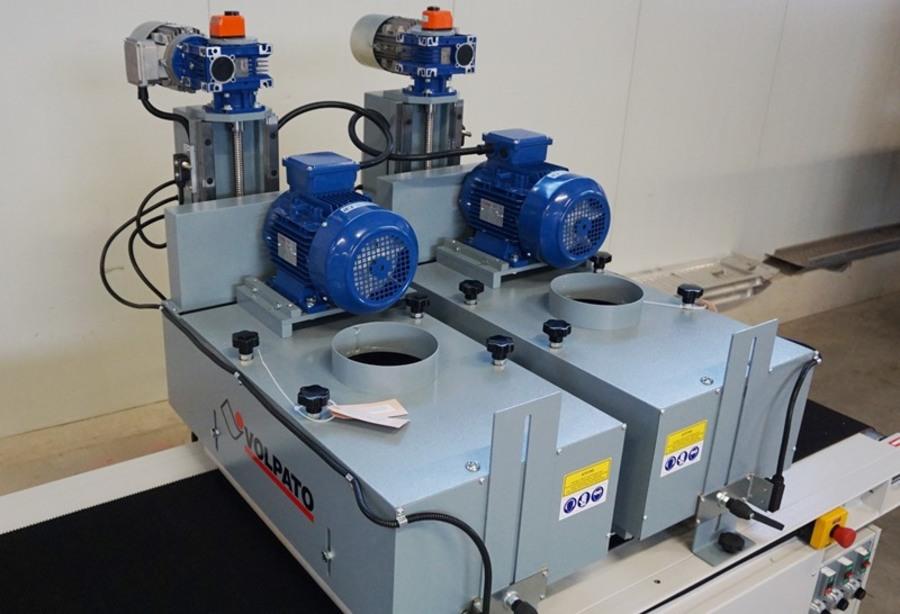

Suction nozzle 2 x 180 mm

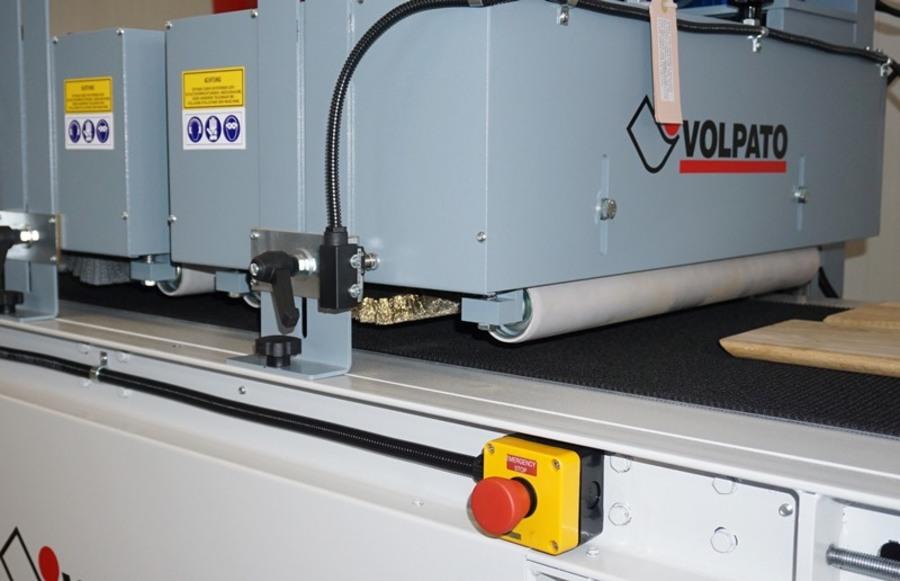

EMERGENCY STOP BUTTON
Motor power of the grinding units 2 x 4 kW
Motor power of the conveyor belt 0.55 kW
Table dimensions 2000 x 860 mm
Includes 1 steel wire and 1 Tinex plastic brush, each 250 mm diameter, 80 grit
NET WEIGHT 700kg
CE declaration of conformity
Operating instructions in English
Brush units inclined up to 20 ° with respect to the direction of movement = when the wood rusts, the veins are also highlighted transversely thanks to a helical action of the brushes

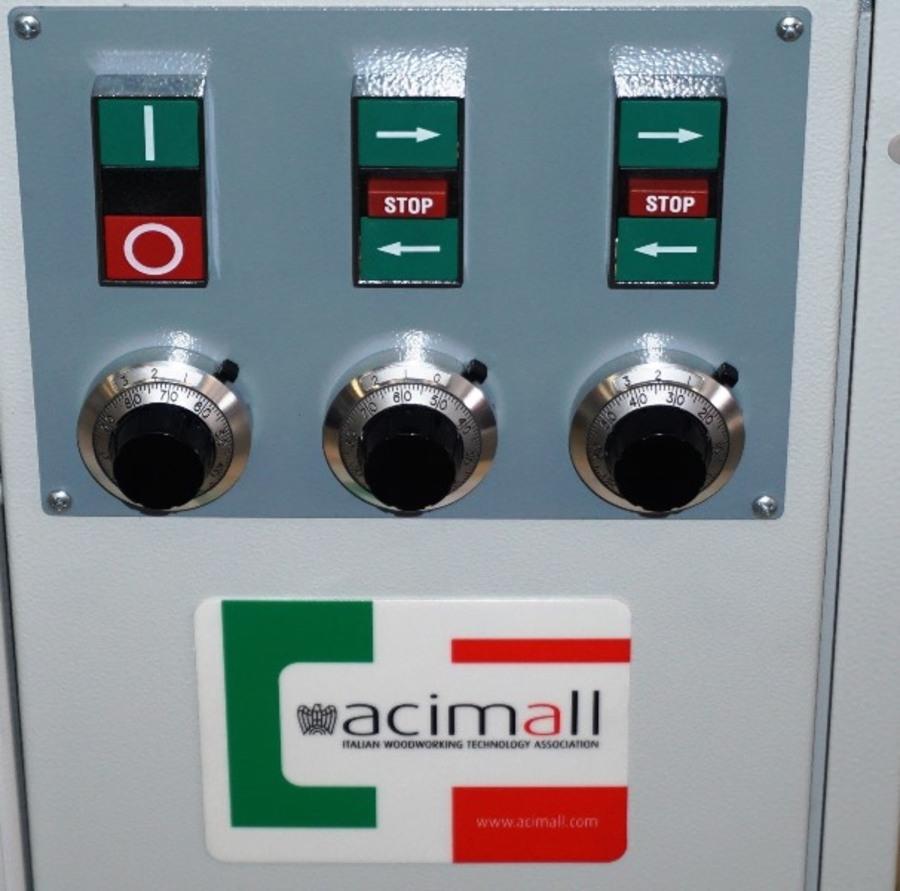

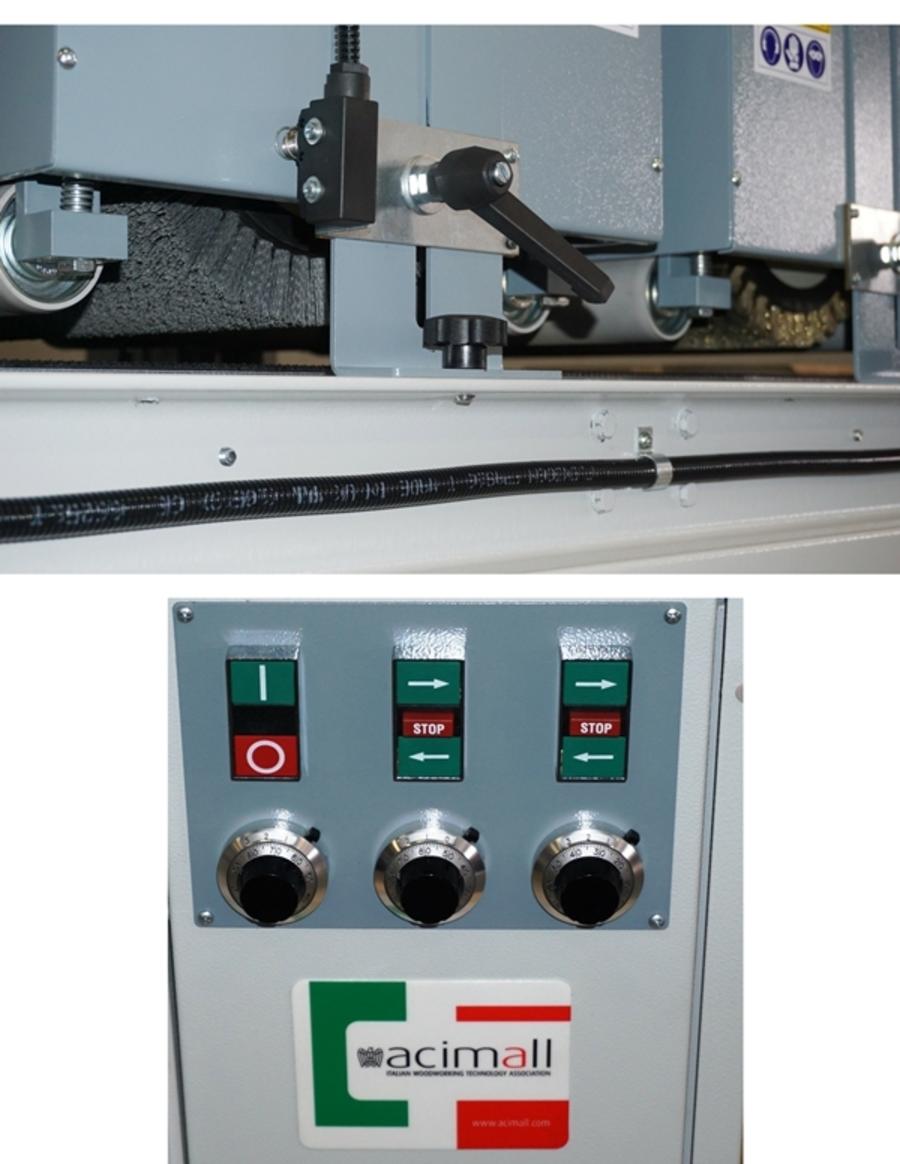

The machine has 3 inverters, one for adjusting the belt speed and 2 for the brush units = many finishing configurations available
Double direction of rotation of the brushes
4kW motors with belt transmission giving double torque to the brush units

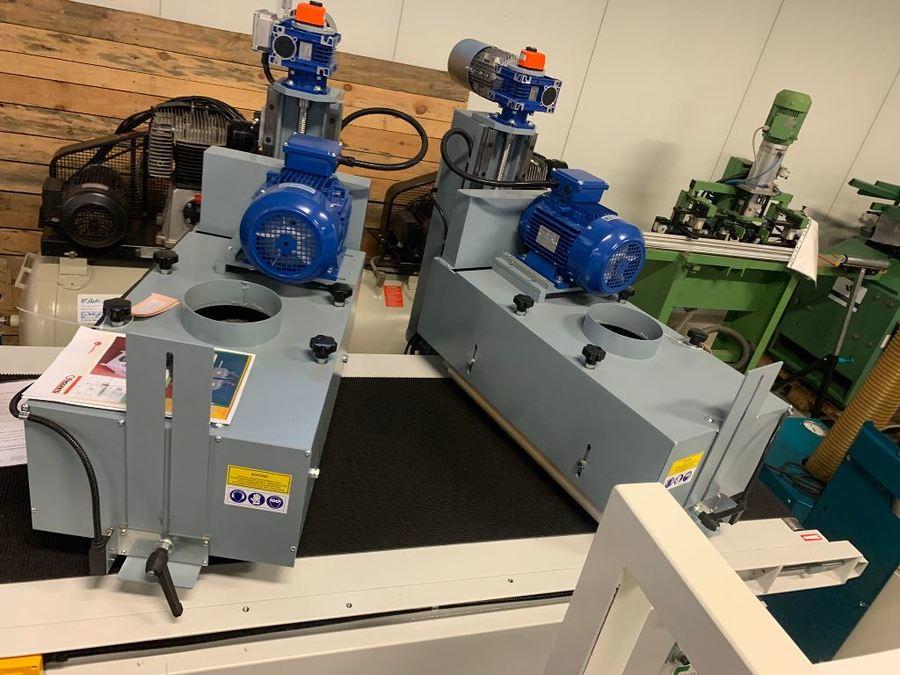

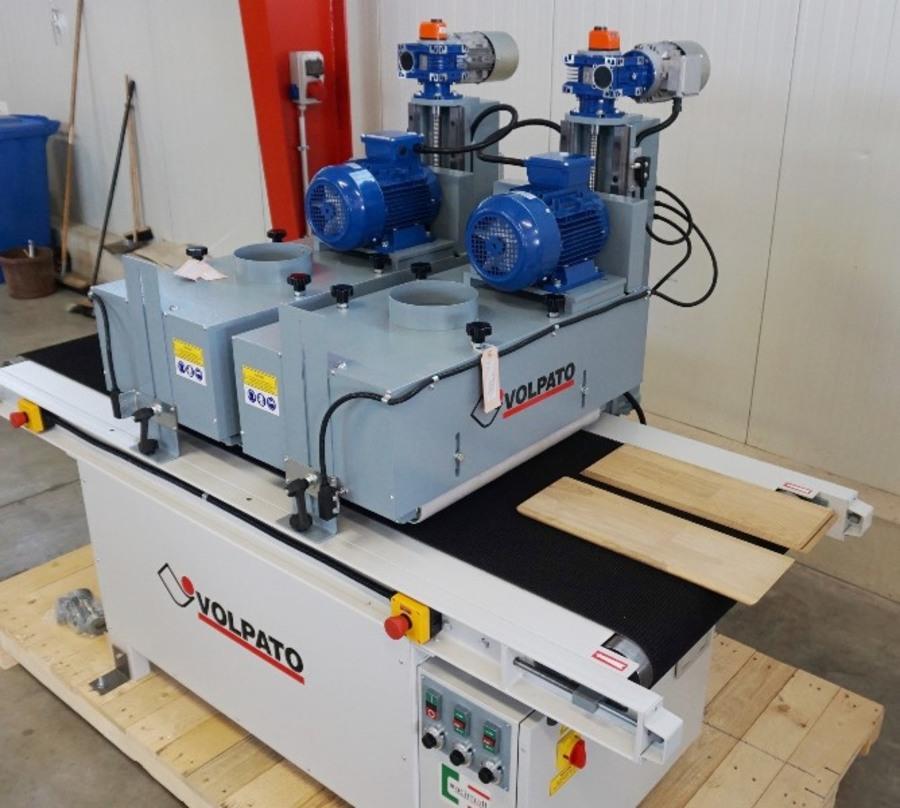

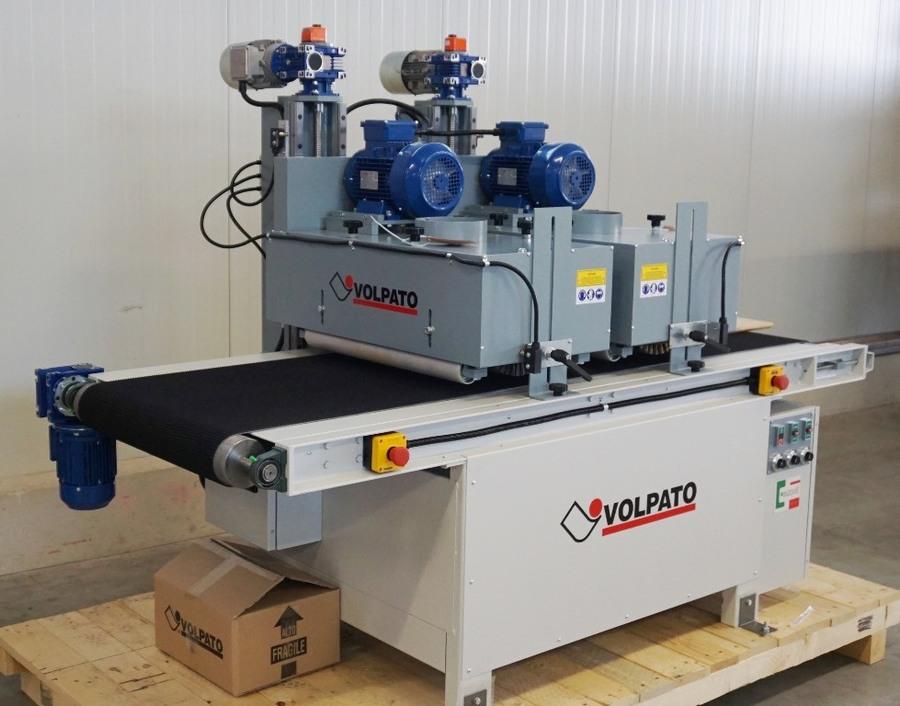

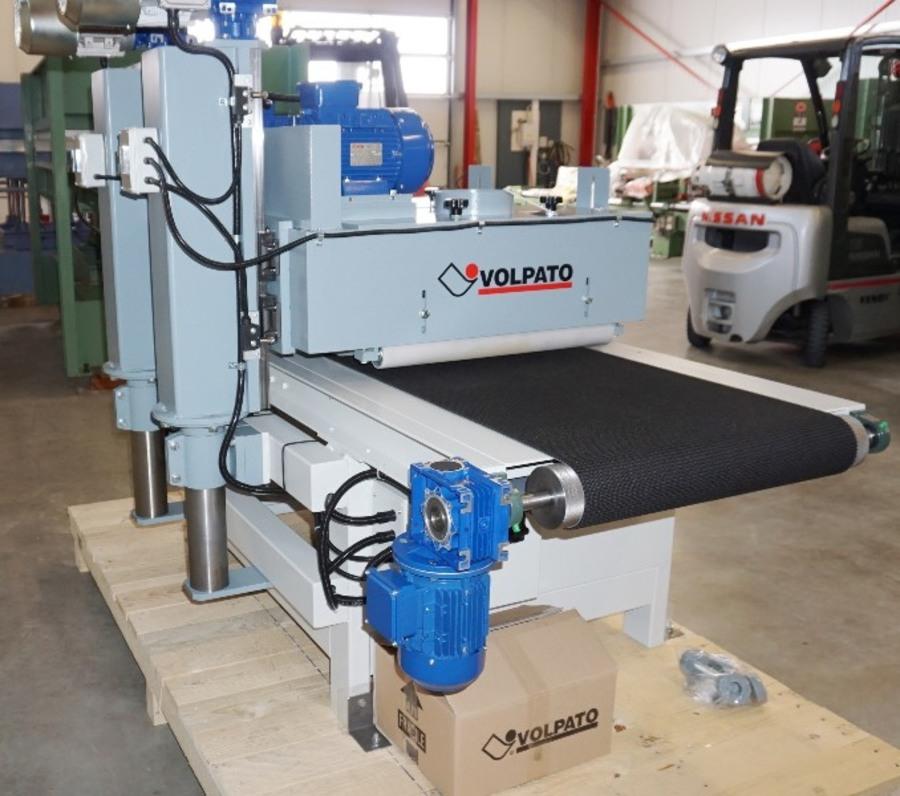

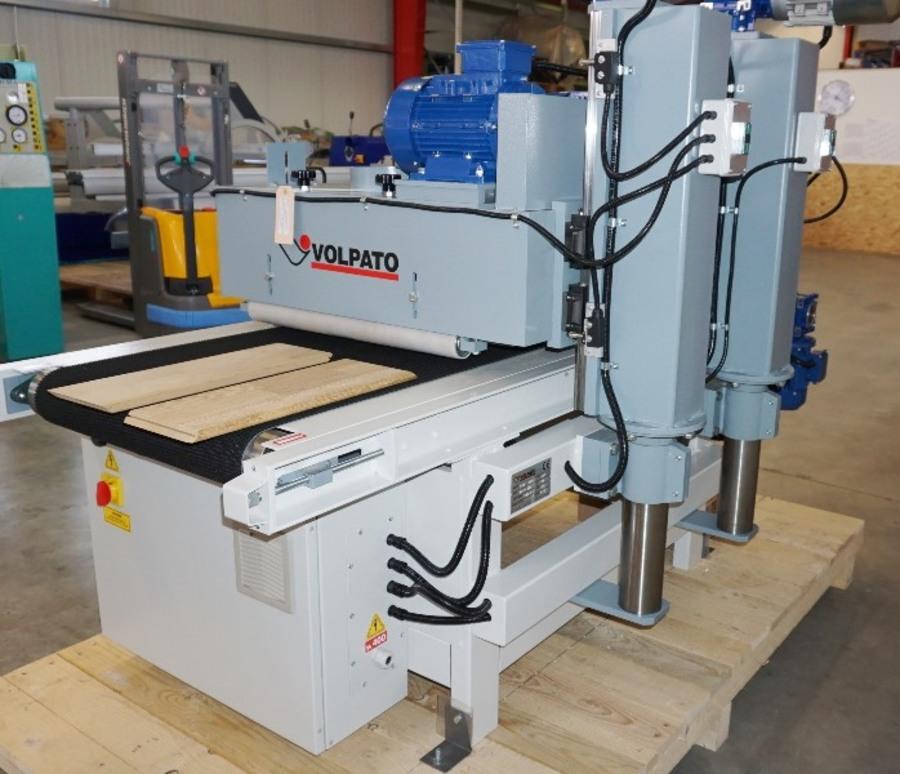

The images serve as an example and represent an identical machine
Transport dimensions approx. 2100 x 1300 x 1900 mm LWH
Weight 750kg
To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment
Sold in AS IS condition
According to the manufacturer, the warranty is 1 year after delivery
Technical information, condition description, year of construction and scope of delivery according to the manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
Any warranty is excluded for used machines. The rule is “bought as seen”.
Terms of payment: Prices plus VAT, payment before collection or shipping
Delivery conditions: ex warehouse or location
