No. 3131

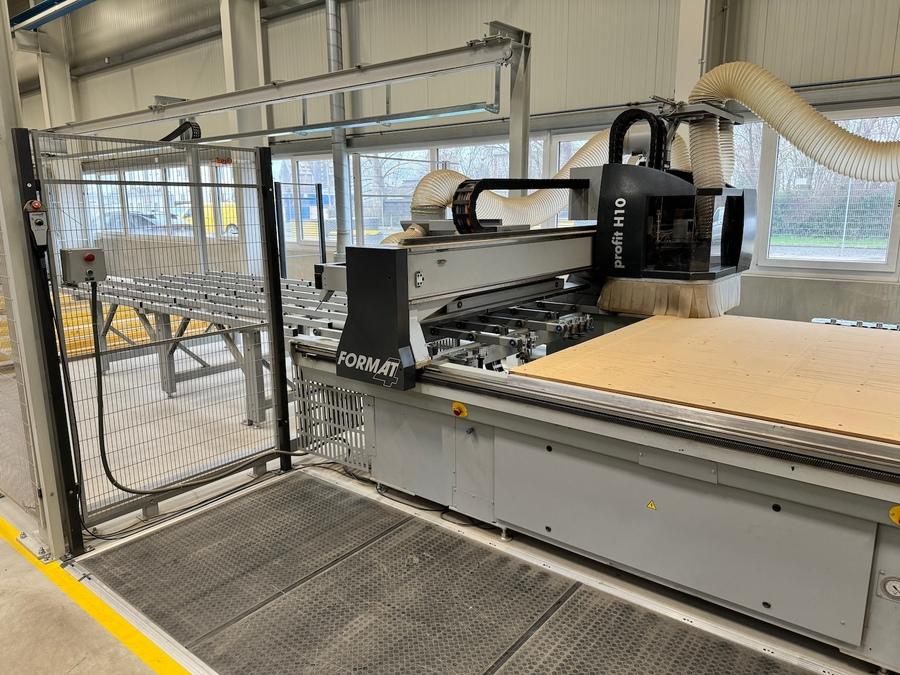

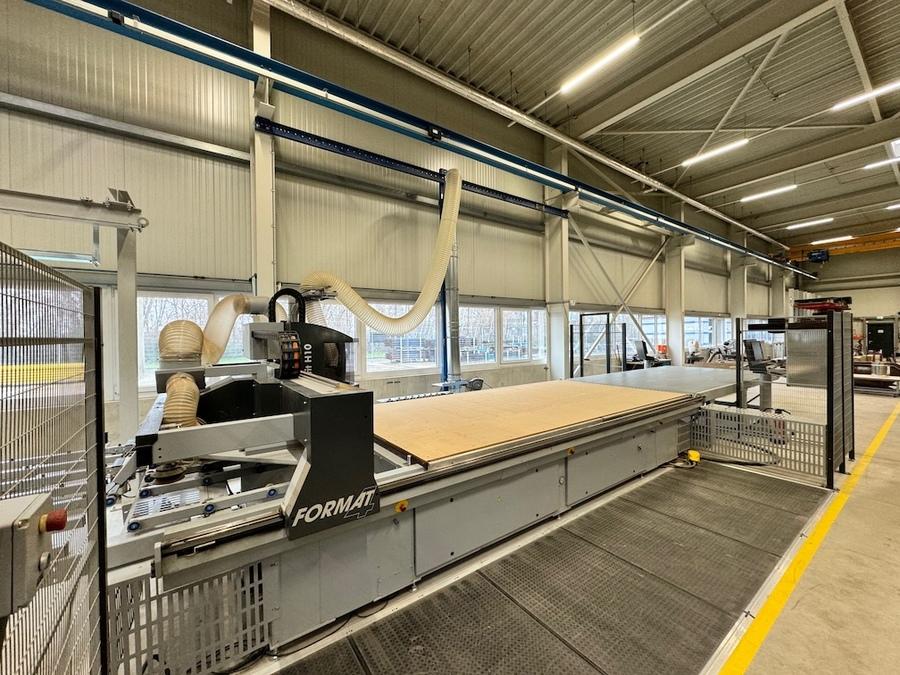

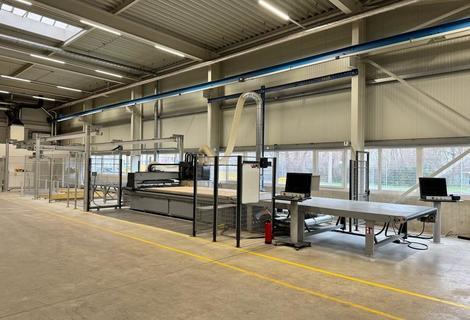

CNC machining center FORMAT-4 profit H10 22.43

Used, year of construction 2017
Operating hours approx. 1800 h

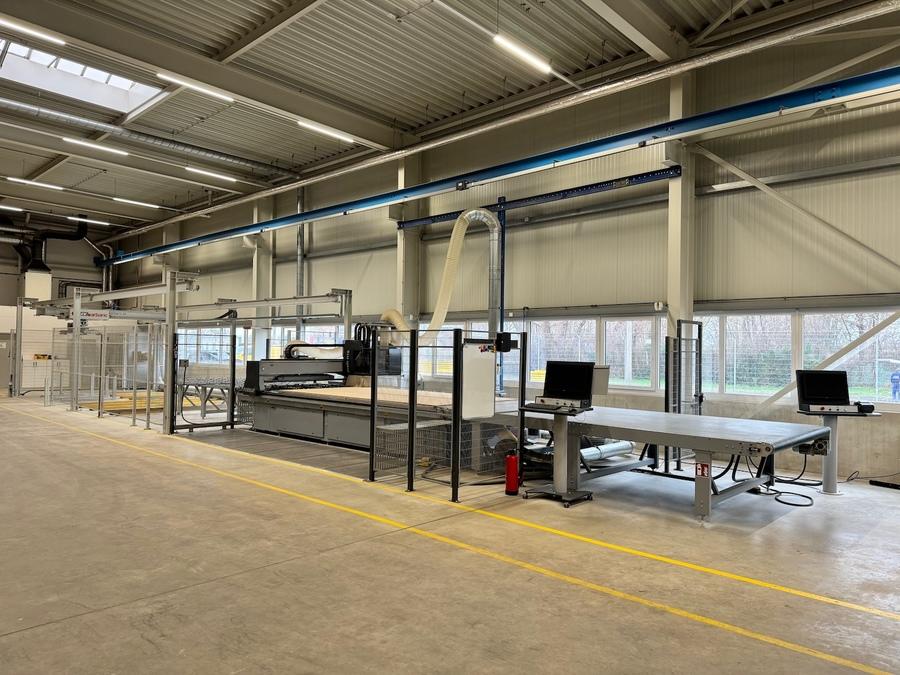

Package consisting of CNC machining center FORMAT-4 profit H10 22.43, feeding unit FORMAT-4 L-Motion and extraction unit FELDER RL 300

Technical data CNC machining center FORMAT-4 profit H10 22.43:

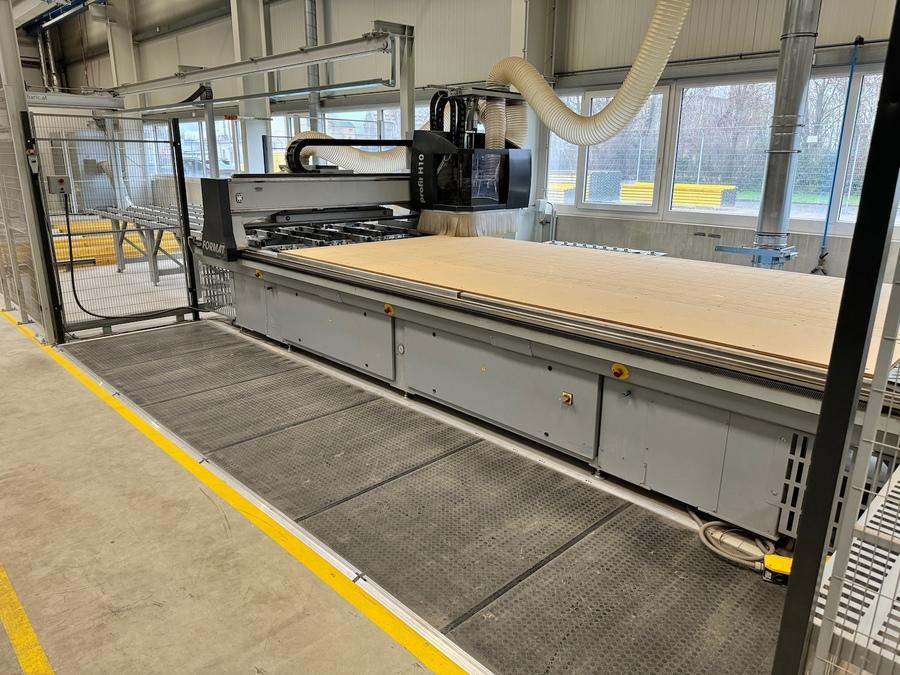

Matrix table system made of phenolic resin
Raster table with two stop rows
Automatic central lubrication
HARDWARE control computer

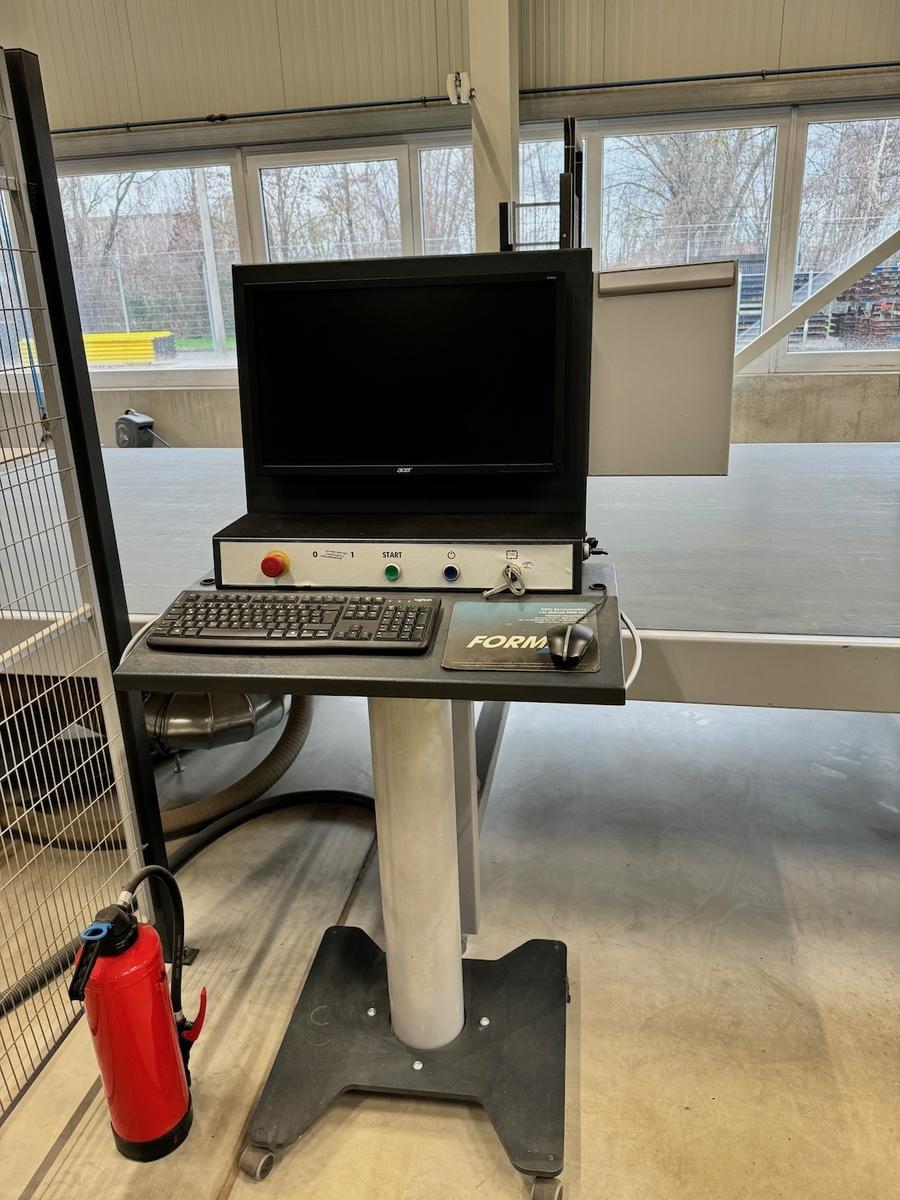

Mobile control panel
Handheld terminal for remote control of the axes
Two vacuum pumps, rated output 2 x 250 m3/h
Tool changer with 10 tools

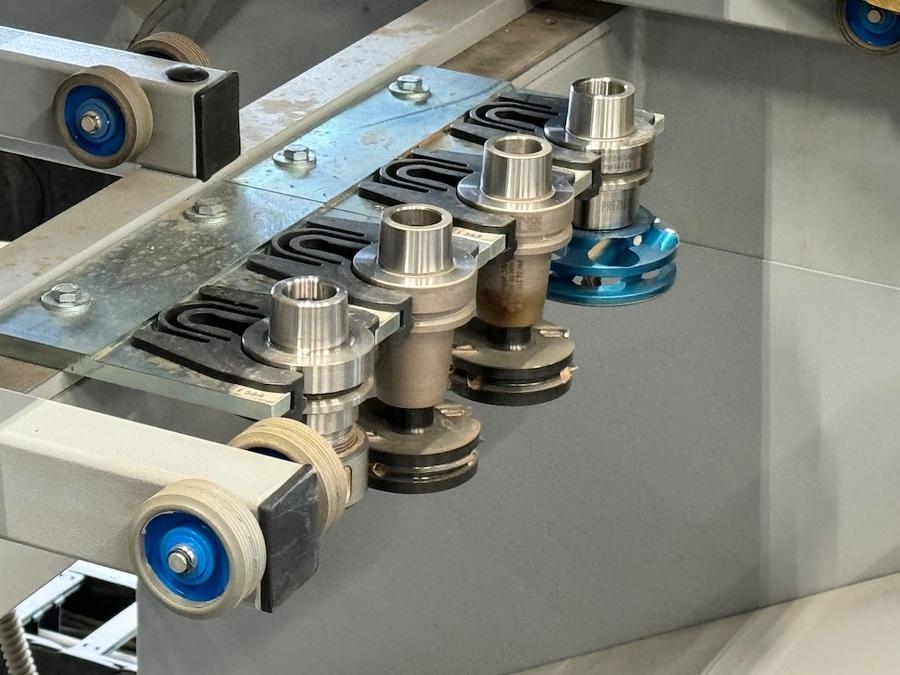

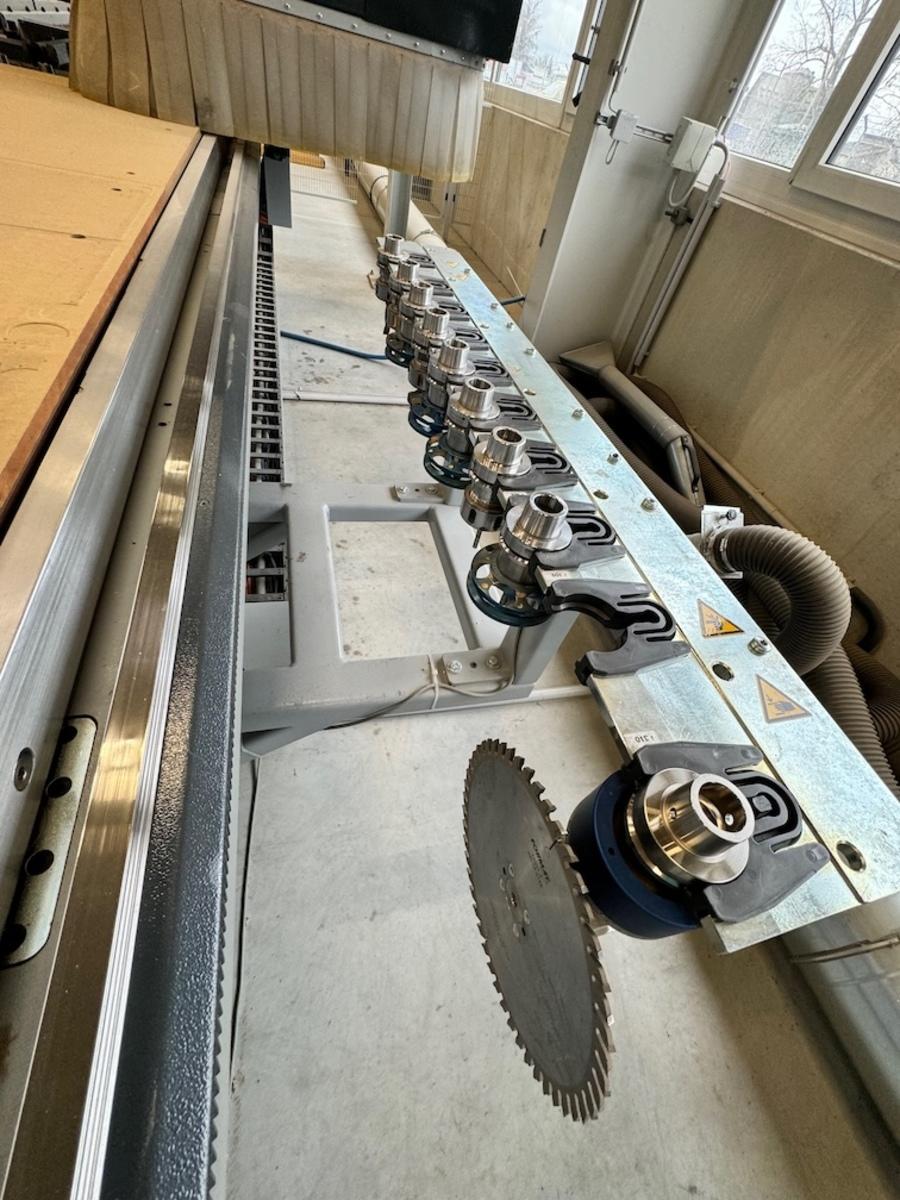

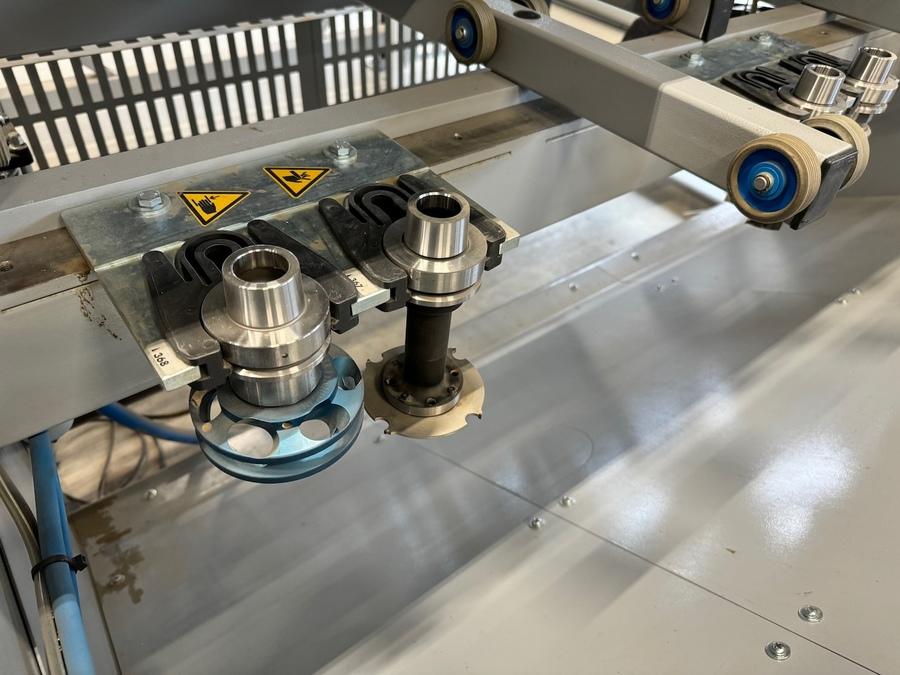

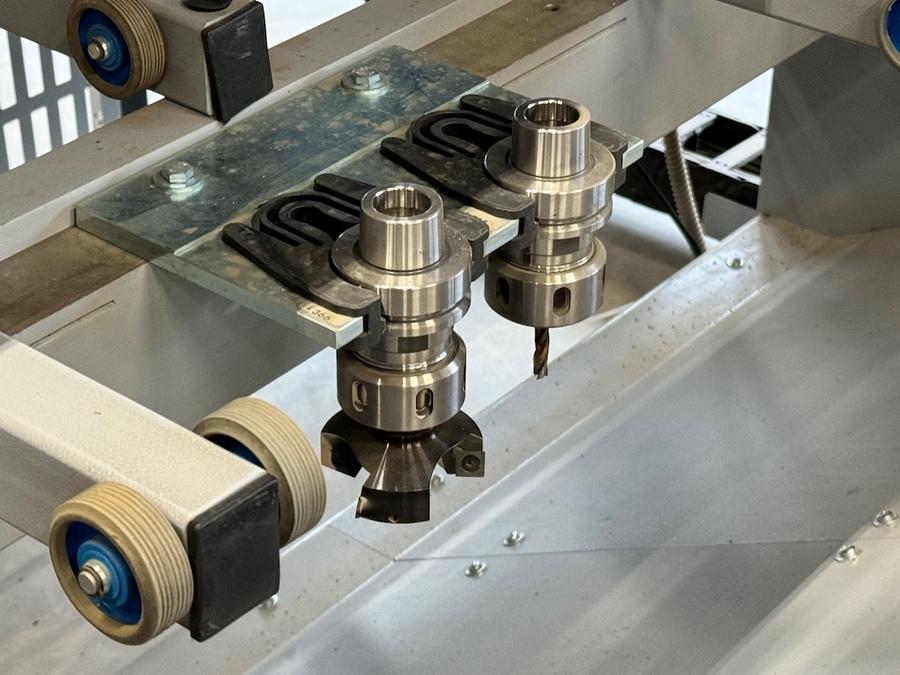

Tool changer on the left in the machine stand: 8 tool positions for HSK

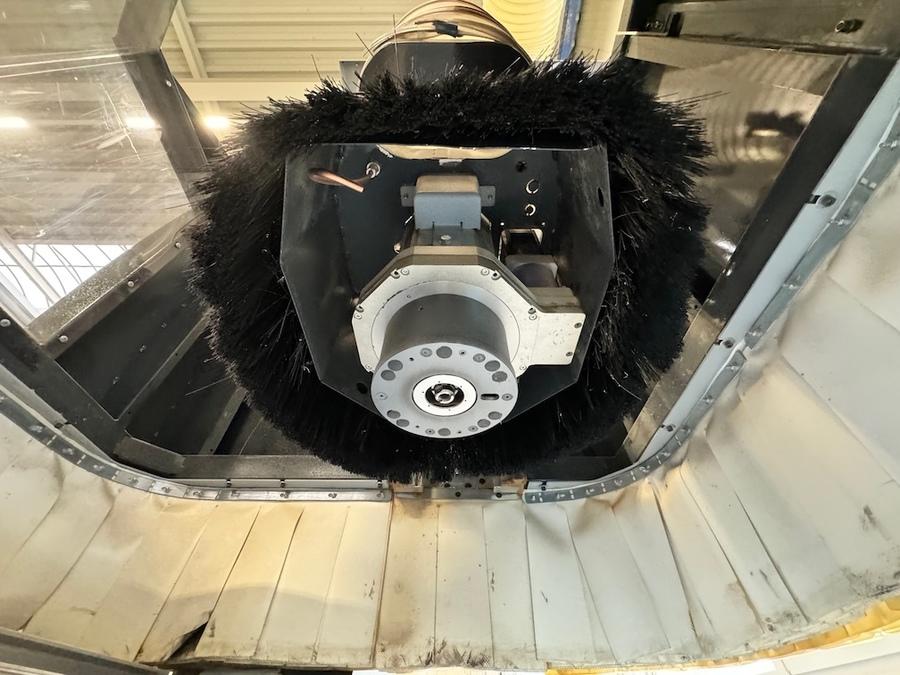

Milling spindle 12 kW (S6) HSK F63, 24000 rpm
Central extraction via merged connections (D=250mm)
Woodflash German software (H20/H08/H10/H50)
Travel of axes H10 22.43: X= 5230 mm / Y= 2560 mm / Z= 280 mm
Working field: X= 4300 mm / Y= 2160 mm / Z= 105 mm
Axis positioning speed: X= 100 m/min / Y= 100 m/min / Z= 30 m/min

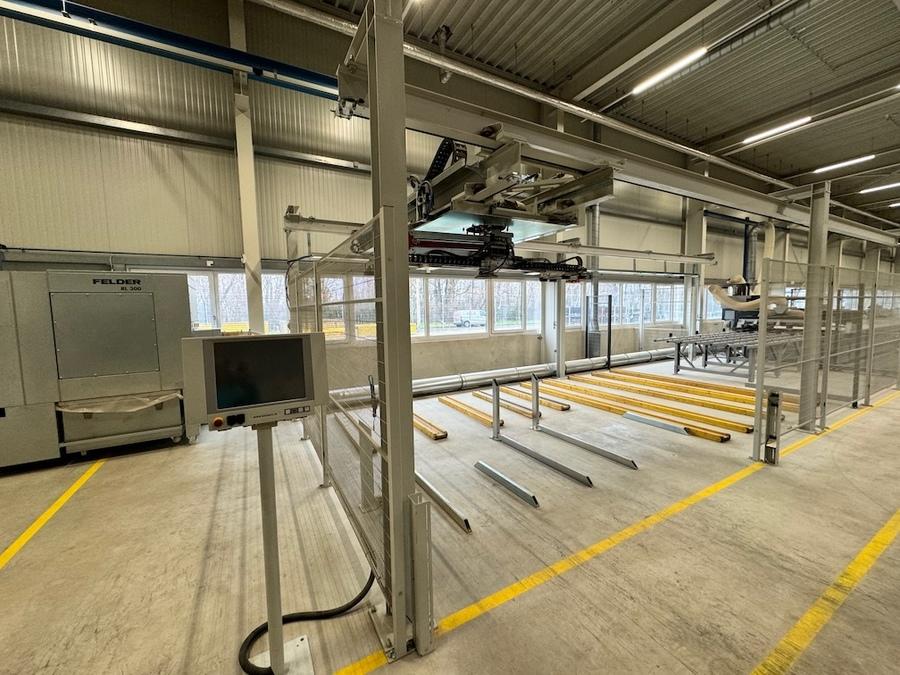

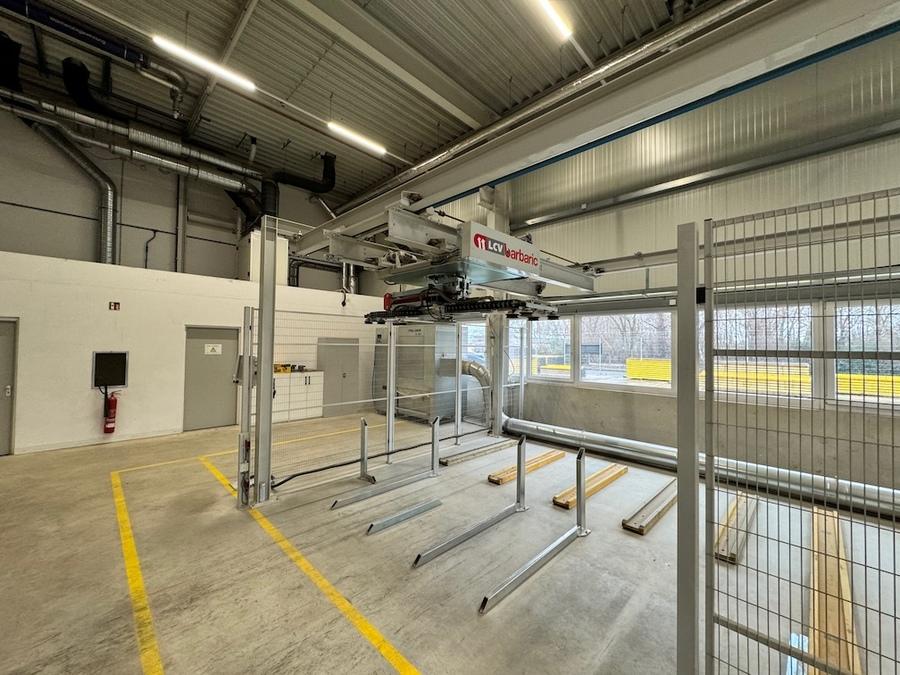

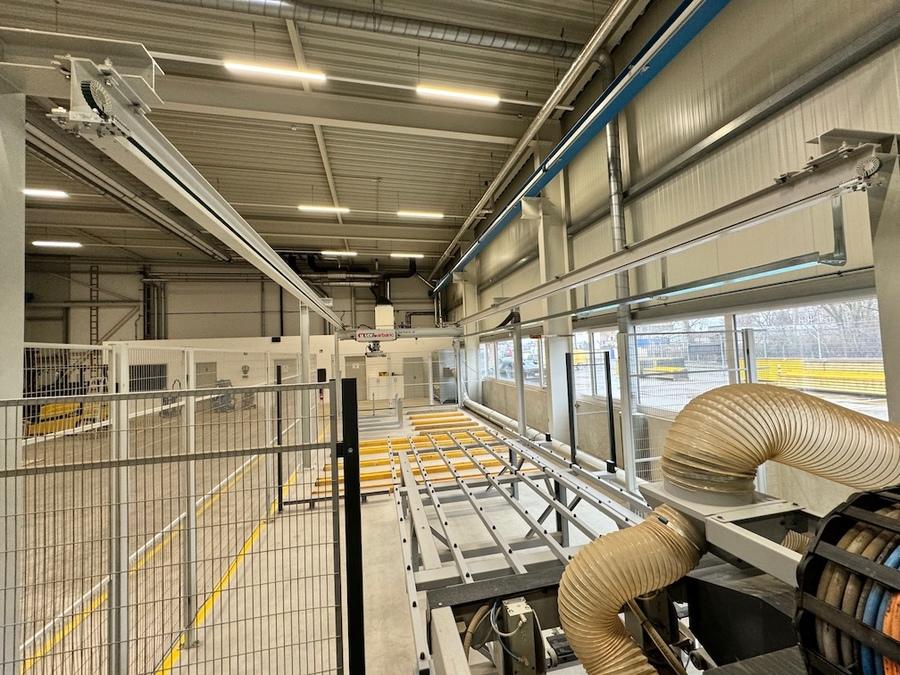

Technical data feeding unit FORMAT-4 L-Motion:
Year of construction 2017
In 2-axis version with 4 storage locations for feeding an H10 with lifting table
Feeding the CNC
Gentle transport
Fully automatic panel handling
Workpiece sizes: Length 2000-4200mm / width 600-2100mm / thickness from 8mm / panel weight 200kg
Density: chipboard 650kg/m3 / MDF raw 750kg/m3
Stacking height 1800mm

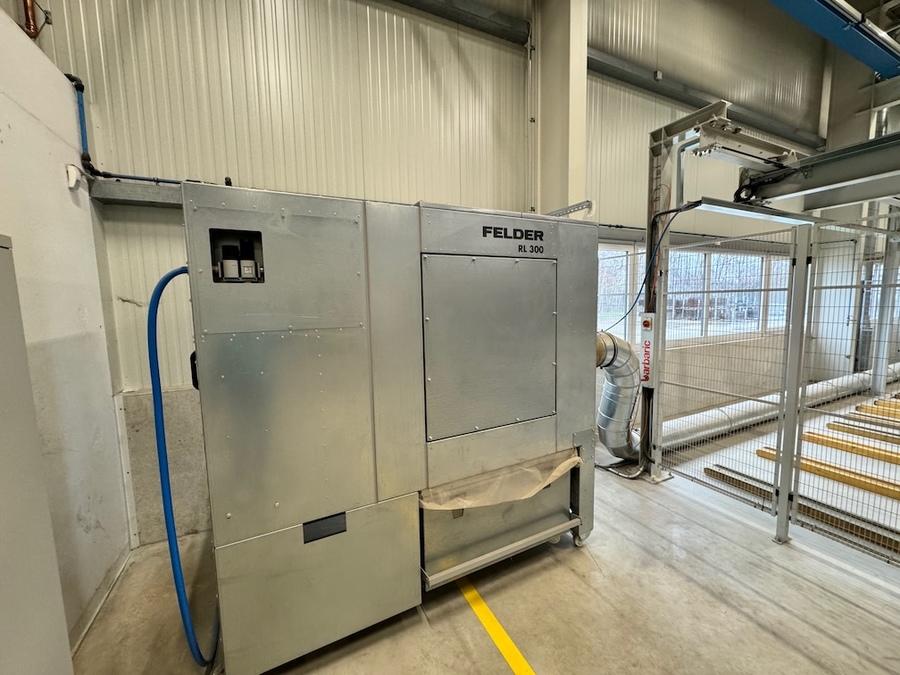

Technical data extraction unit FELDER RL 300:
Year of construction 2023
Nominal volume flow 6000 m3/h, H3 GS dust-tested, JET cleaning
Compressed air connection 3/4 inch
Connection pressure 7 - 12 bar with 40NL/min
Operating pressure in the device 6 bar
Chip container capacity 500 l
Extinguishing device with powder extinguisher Dry fire extinguisher 12 kg

Sale On behalf of customer, ex location Leipzig, without dismantling, without transportation and assembly
Subject to errors in description and price
Dismantling and loading by us optionally possible

To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: "purchased as inspected"

Terms of payment: Prices plus VAT, payment before collection or dispatch

Terms of delivery: ex location
