No. 3274

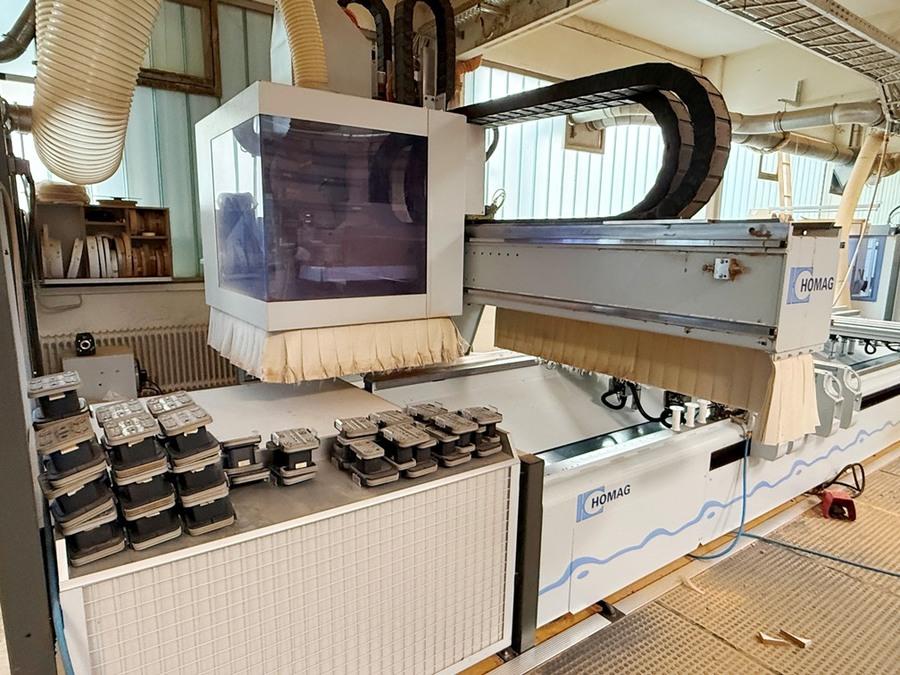

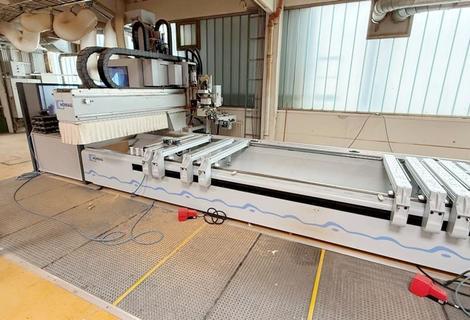

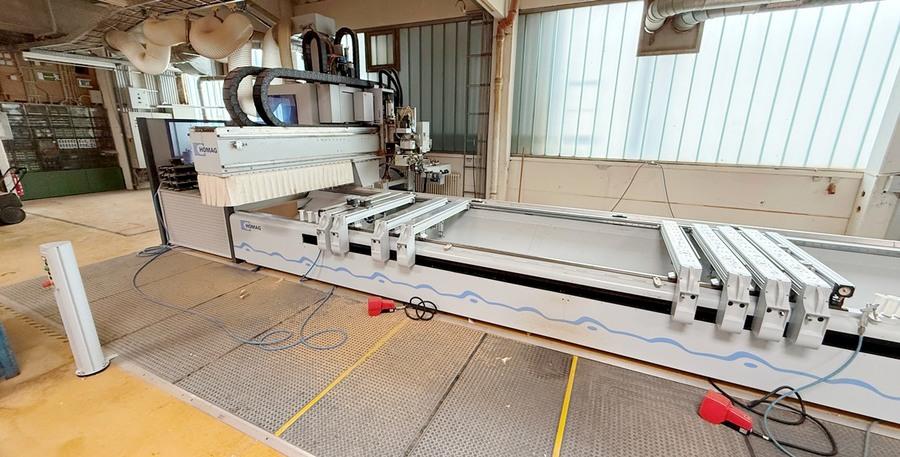

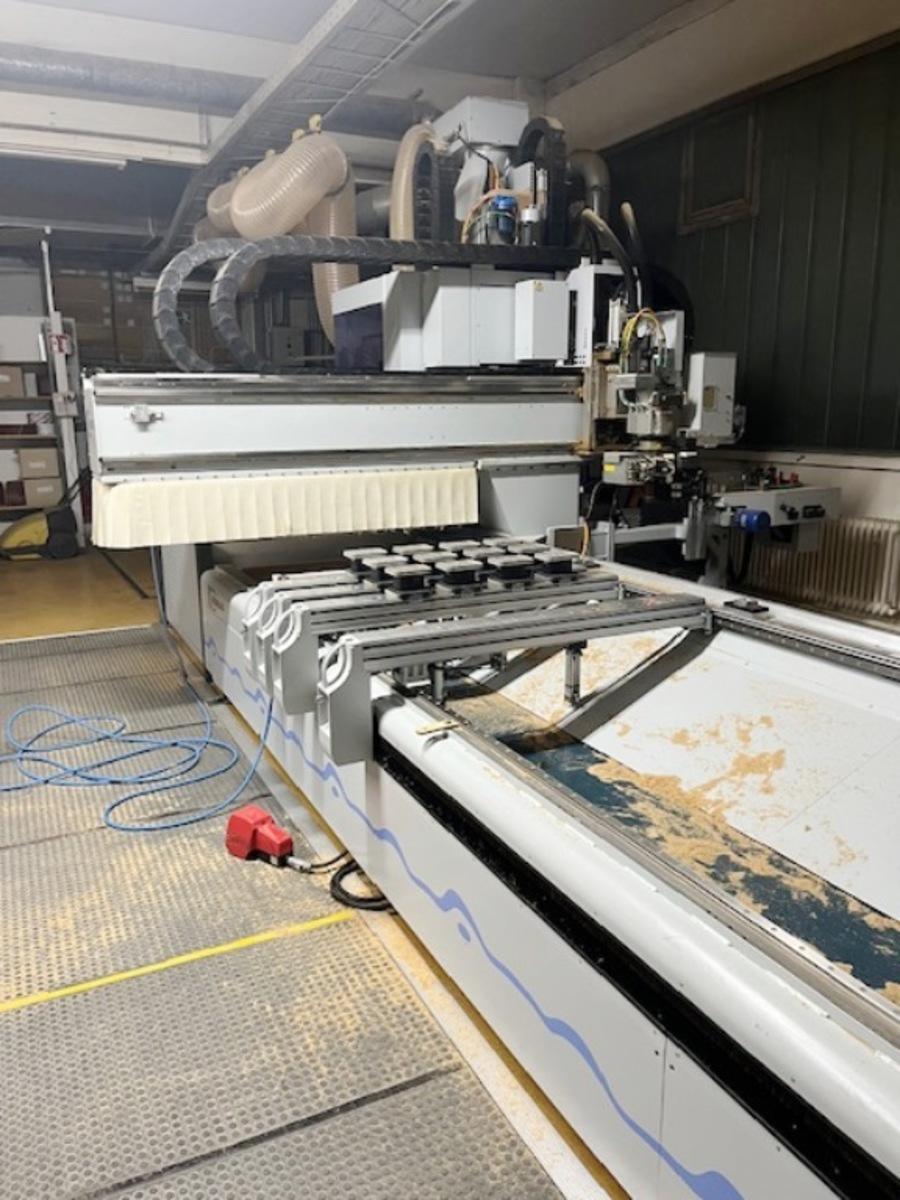

CNC machining center HOMAG PROFI BAZ 222/40/F/K

Used, year of construction 2012

Working range X max. 4000 mm
Working range Y max. 1550 mm
Workpiece thickness max. 300 mm (incl. clamping devices)

5-axis main spindle HOMAG DRIVE5+
Spindle power 15 kW (S6) / 12 kW (S1)
Spindle speed 1000 - 24000 rpm
Tool clamping system HSK-F63

18-position rotary tool changer
Pickup station for saw blade Ø 350 mm

Drilling head with 21 spindles
17 vertical drilling spindles
2 horizontal drilling spindles in X-direction
2 horizontal drilling spindles in Y-direction
Grooving saw swivelling 0° / 90°

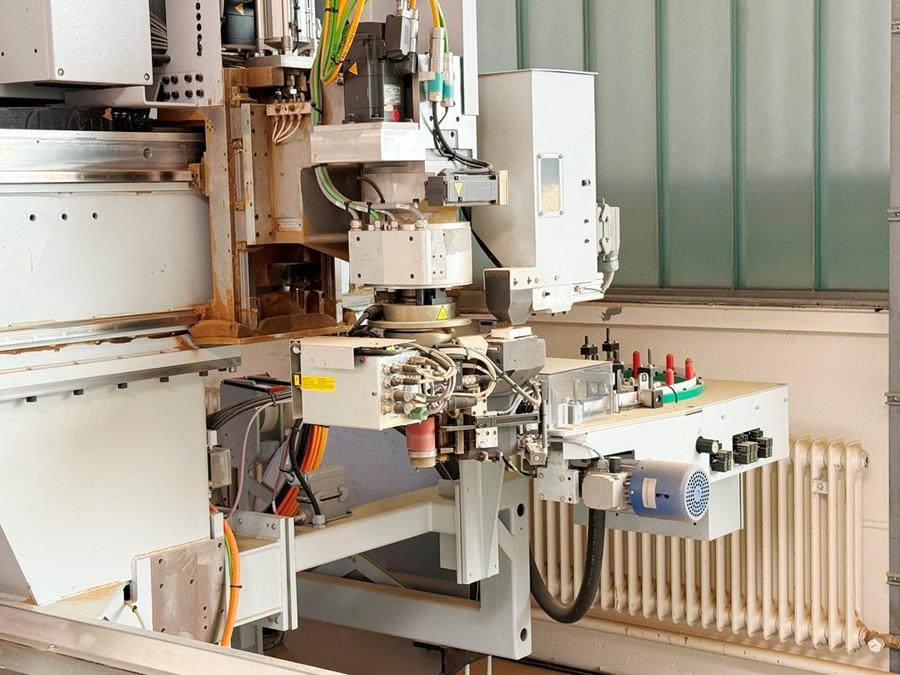

Edge banding unit HOMAG POWER EDGE
360° edge banding
Pre-cutting station
2-position edge roll magazine

2 independent Y-axes for main spindle and edge banding unit

Console table with 8 consoles
Vacuum clamping devices
2 vacuum pumps, total capacity 2x 100/140 m3/h

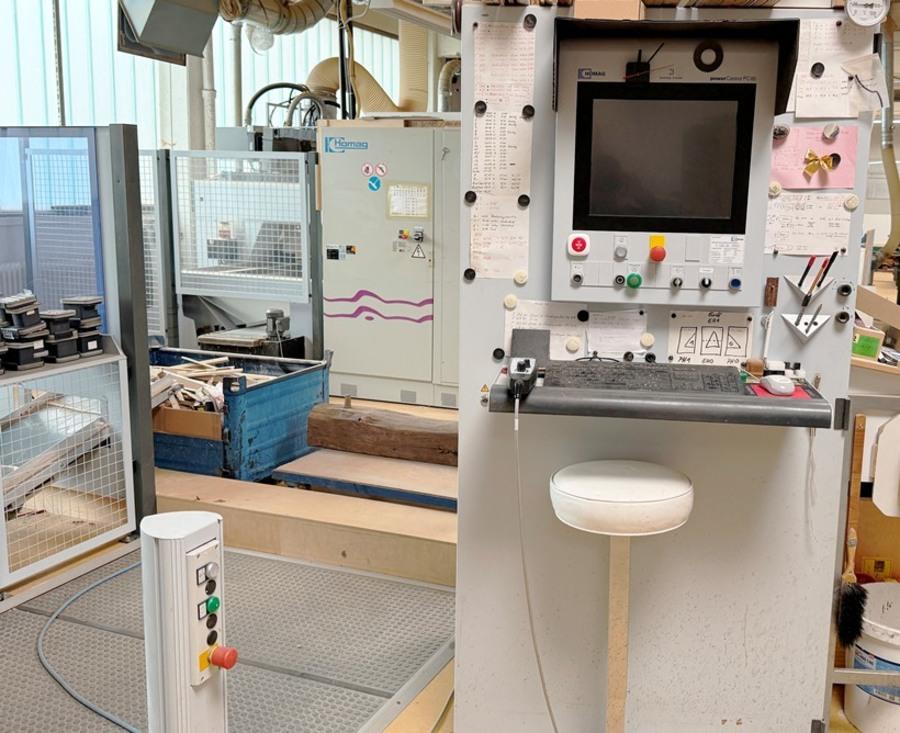

Control HOMAG powerControl PC85
Programming system woodWOP 6.0 (according to original order configuration)
woodWOP Premium package incl. 4 single-user licenses / woodWOP Wizard / woodWOP technology database / woodWOP CAD/CAM Standard interface / DXF interface / woodMotion machining simulation / woodScout diagnostic system / collisionControl collision monitoring / Schuler MDE Basic machine data acquisition

Sale on behalf of customer, ex location near 71063 Sindelfingen, without dismantling, without transport and assembly
Dismantling, loading, and transport by us optionally available

Subject to errors in the description and price

To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Photos and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or shipping

Terms of delivery: Ex location

Our general terms and conditions apply, available online at www.kauz-maschinen.de

Please pay particular attention to Article 9 regarding complaints and returns!
