No. 04513

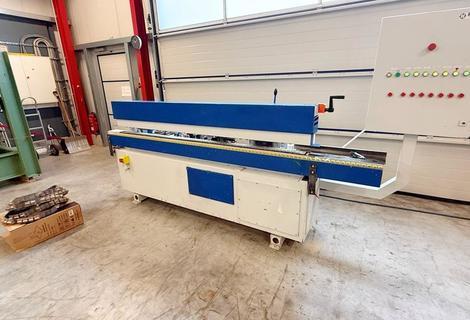

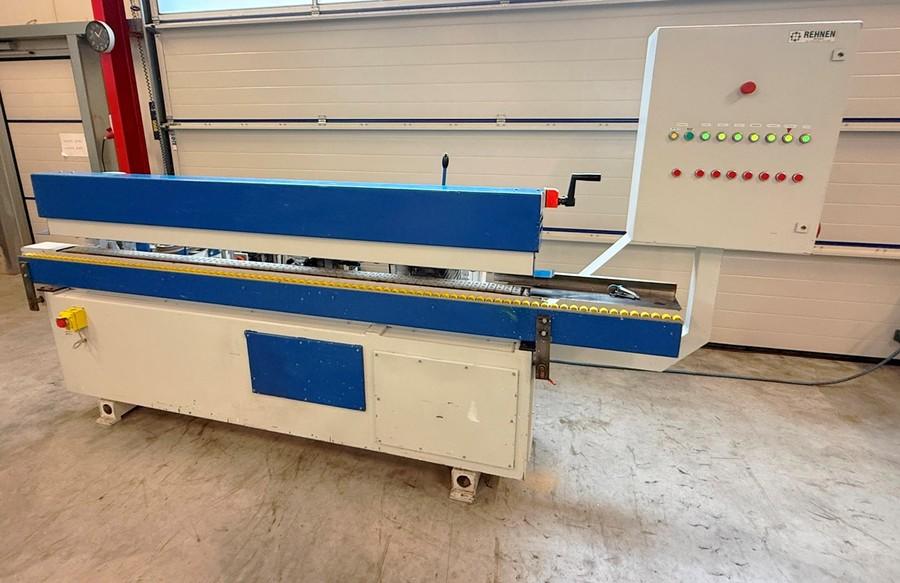

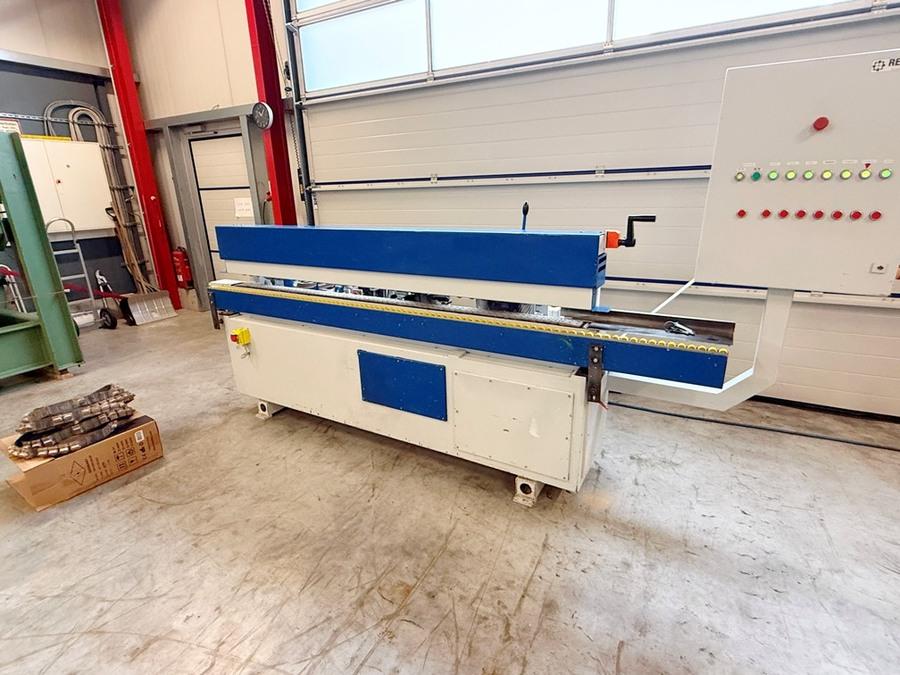

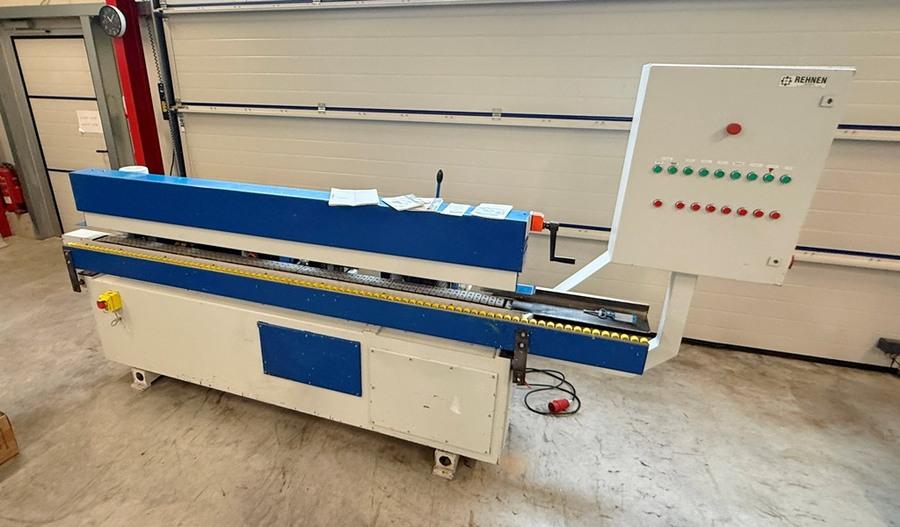

Profile grinding machine / automatic edge processing machine Rehnen KBA

Used

Profile grinding machine / automatic edge processing machine for grinding edges, milling profiles, and grinding profiles in a continuous process. The machine also has a corner copying milling machine. The materials to be processed are solid wood, chipboard, and MDF.

Material thickness 10 - 65 mm
Material length min. 50 mm
Material width min. 60 mm
Feed speed 8 m/min
Total power 6.5 kW

Equipment:
- Oscillating edge sanding device (sanding belt dimensions 150 x 1500 mm / 1400 and 2800 rpm / oscillation stroke 30 mm / contact roller and sanding shoe)

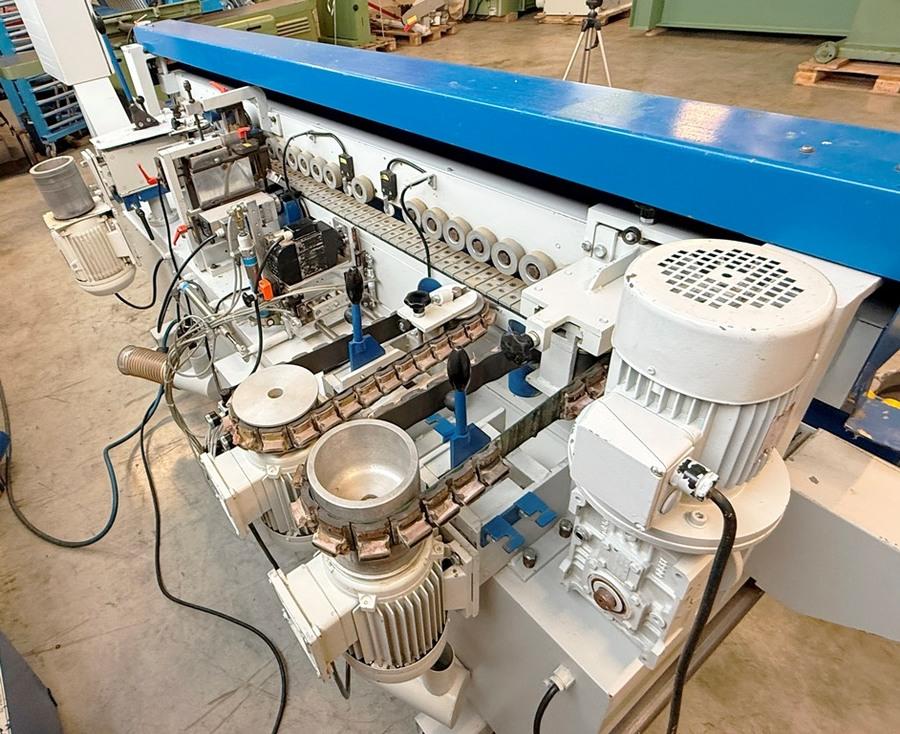

- Upper milling unit
- Lower milling unit
- Corner copying milling machine / corner rounding milling machine
- Bottom profile sanding device
- Top profile sanding device

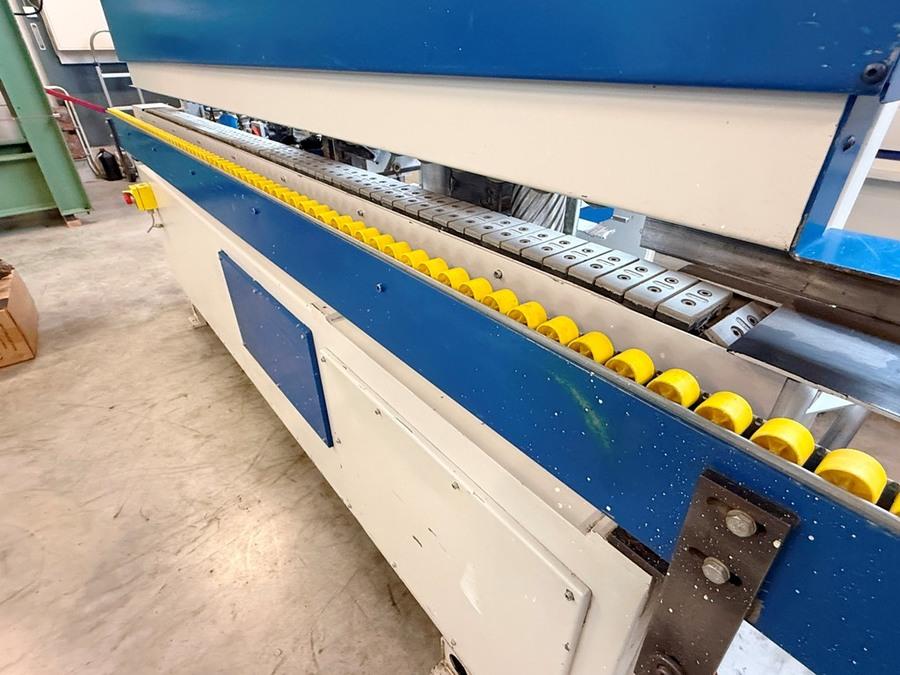

- Feed chain conveyor with top pressure

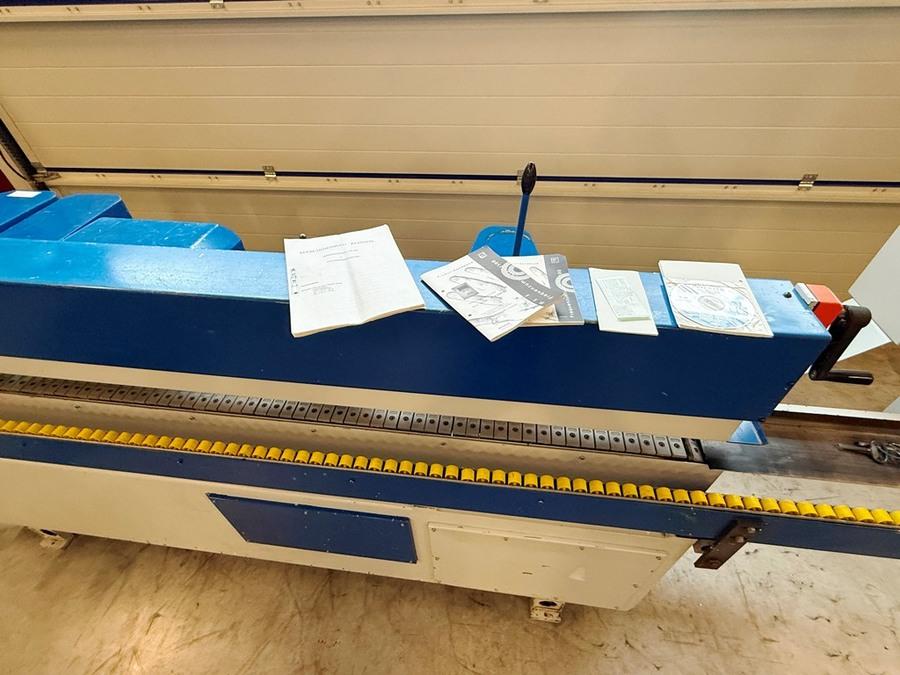

Incl. technical documentation

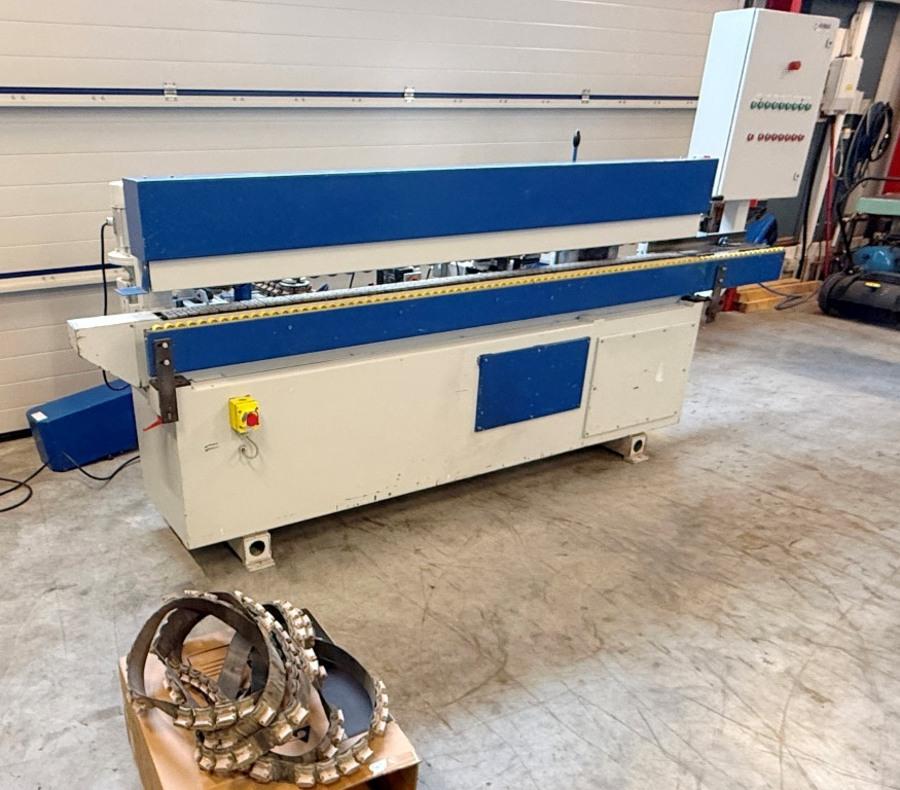

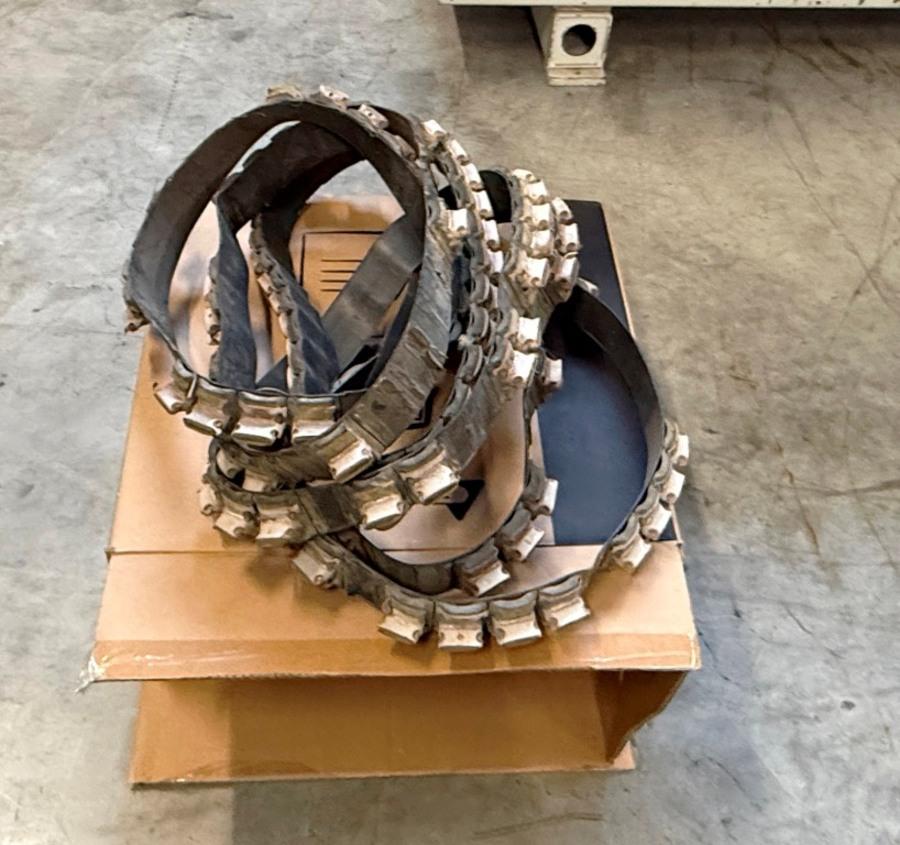

Incl. 6 used profile belts (must be refitted)

Transport dimensions approx. 3700 x 1000 x 1700 mm LWH
Weight approx. 800 kg

To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded; the following applies: “sold as seen”

Terms of payment: Prices plus VAT, payment before collection or shipping

Terms of delivery: ex warehouse

Our terms and conditions apply, which can be viewed on the Internet at www.kauz-maschinen.de

Please note in particular Article 9 concerning complaints and returns!
