No. 3177

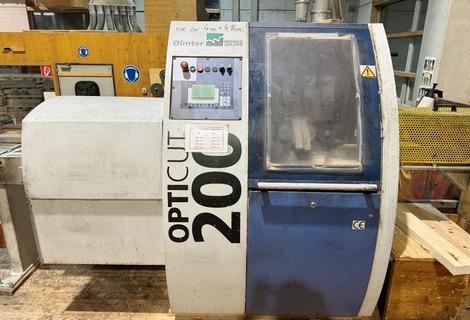

Automatic optimizing cross-cut saw WEINIG Dimter OptiCut 200 - 1

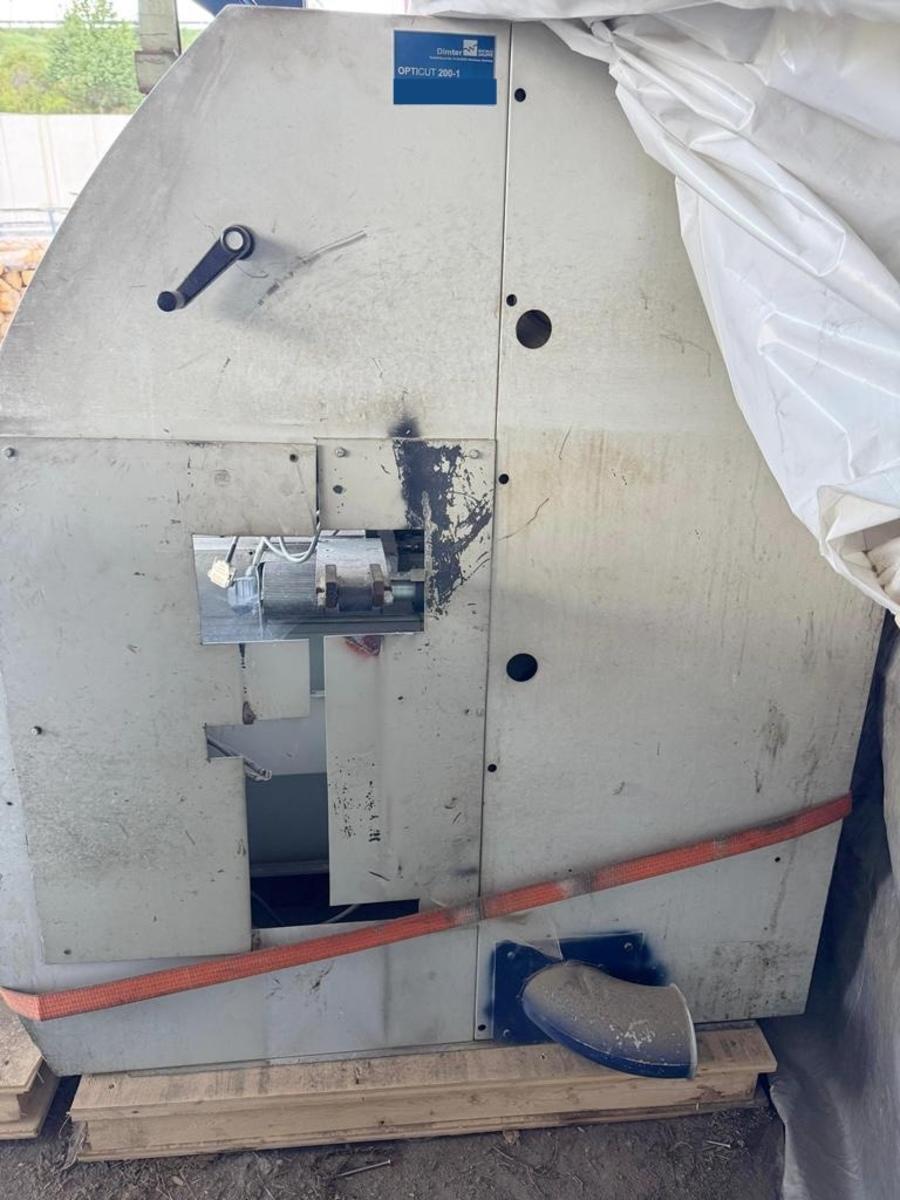

Used, year of construction 2007, machine already dismantled

For cutting timber to fixed lengths

Timber dimensions to be processed:
Minimum / maximum input length: 3000 - 5000 mm
Minimum / maximum input width: 80 - 200 mm
Minimum / maximum input thickness: 38 - 80 mm

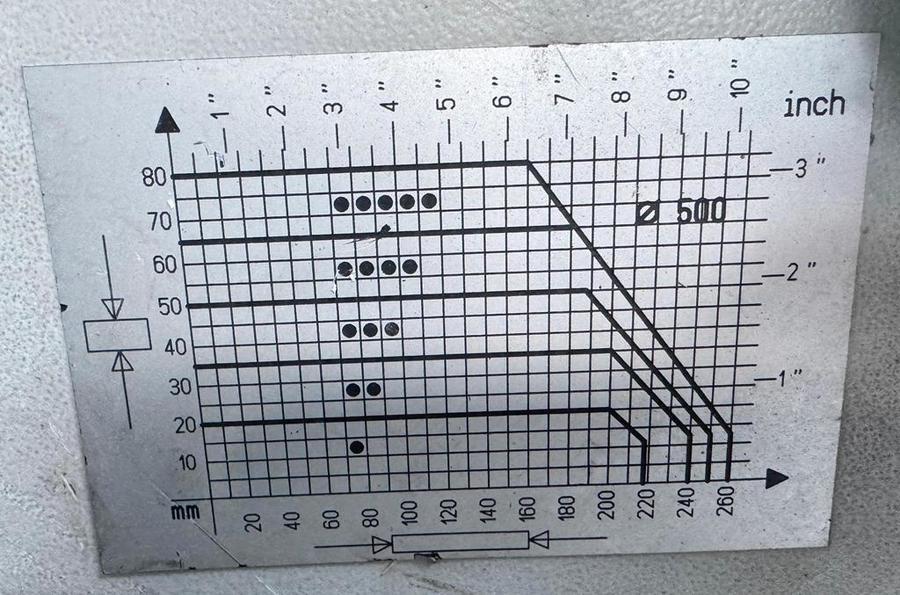

Maximum timber cross-section: 200 x 50 mm
Minimum / maximum finished timber length: 700 - 1000 mm
Average number of cuts per board: 5
Types of wood: softwood or hardwood

System performance:
Maximum feed speed: 180 m/min, continuously adjustable
Time per cutting cycle, including braking: 0.7 - 1.2 seconds

Overview of components:
Item 1: Infeed conveyor belt upstream of the saw
Length: 1.5 m, coupled to the saw’s feed motor

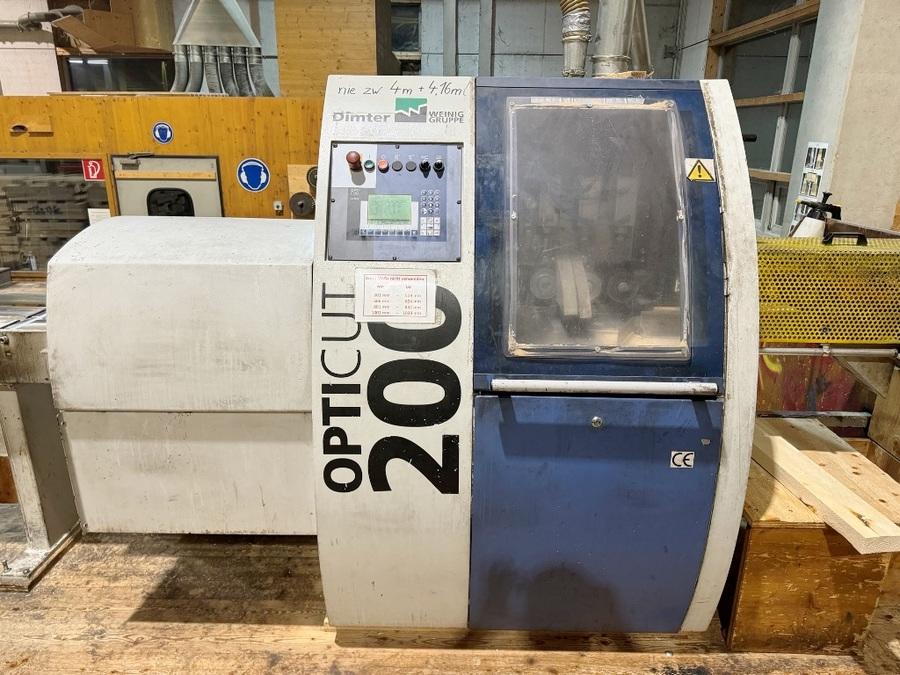

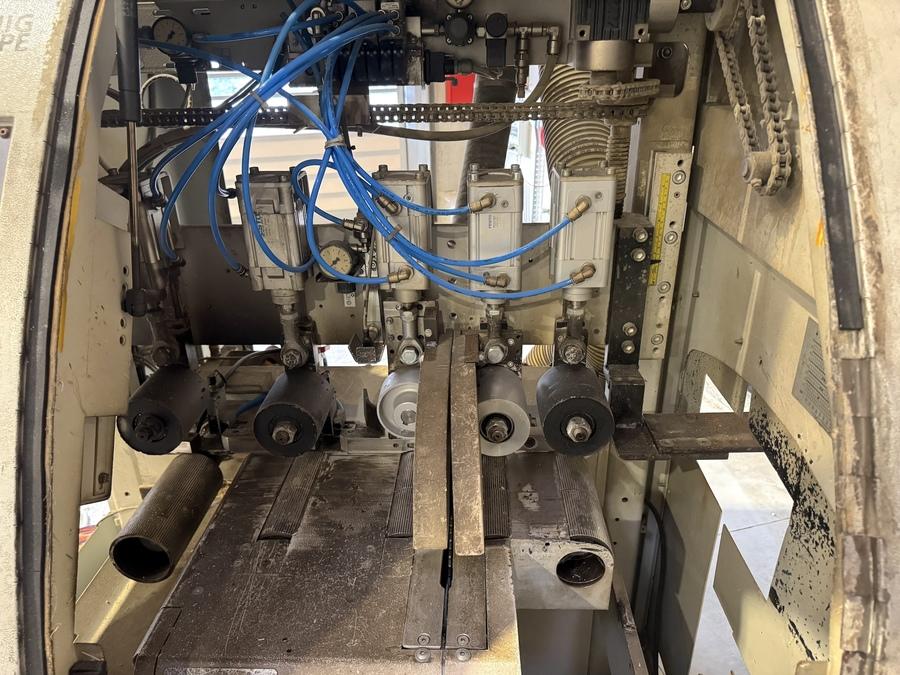

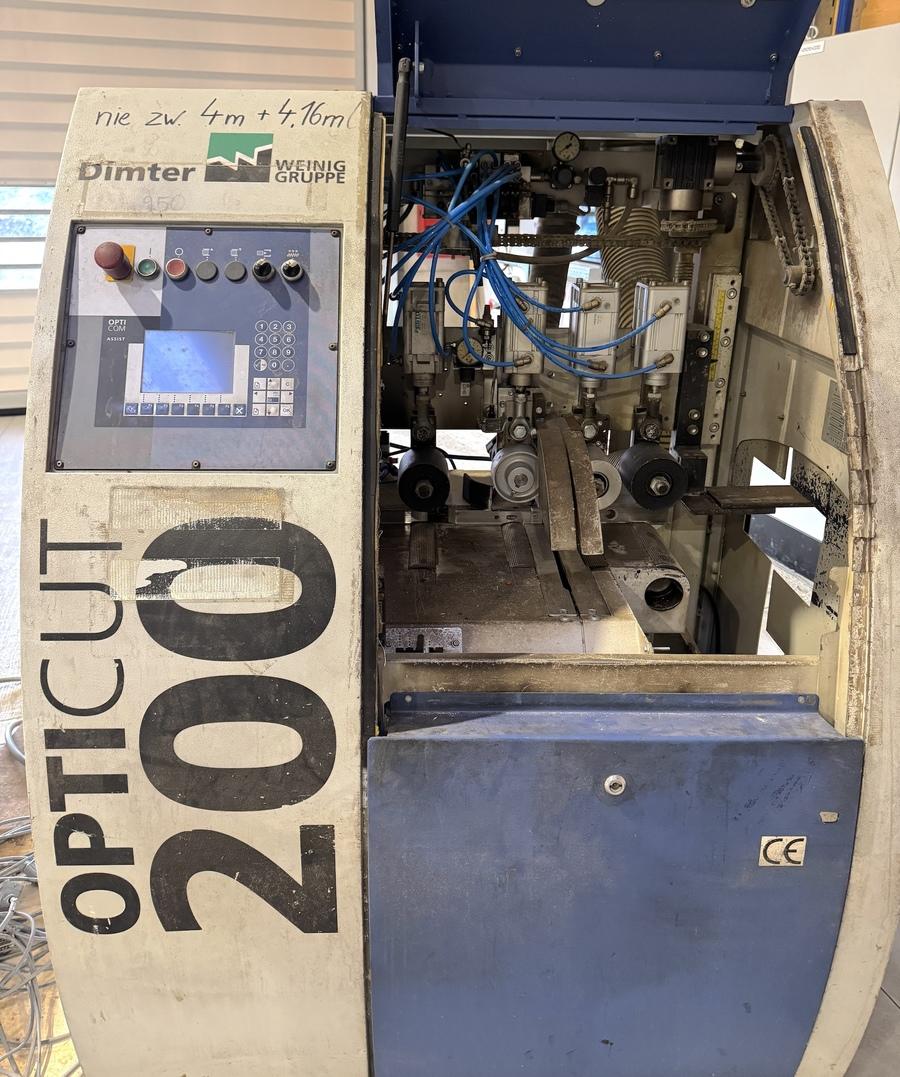

Item 2: Automatic cross-cut saw OptiCut 200 - 1, left-hand version
With integrated length-measuring wheel and integrated blow-out device for waste pieces
Graphics-capable operator terminal with 1/4 VGA display, numerical keypad and function keys, including the OptiCom software package for system control
The machine is fed from the left-hand side

Item 3: Outfeed conveyor belt / sorting station
With drive unit, without ejectors
Conveyor length: approx. 1.5 m

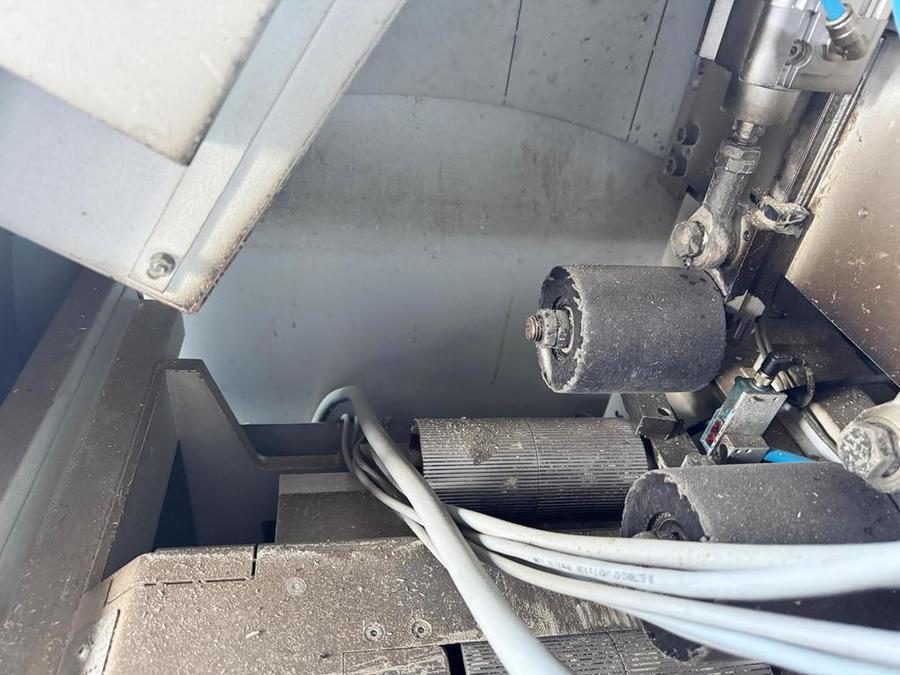

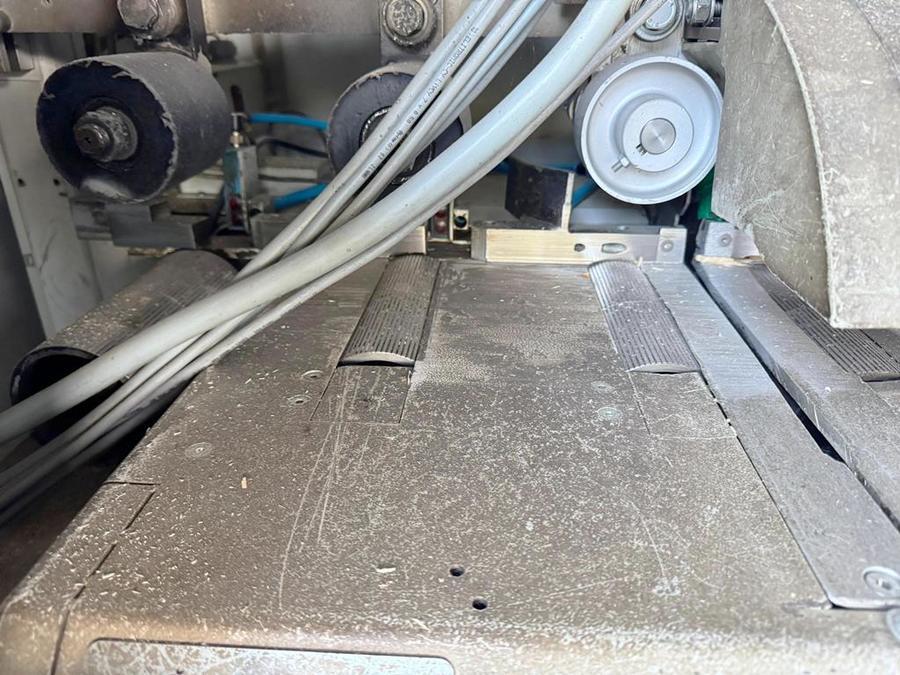

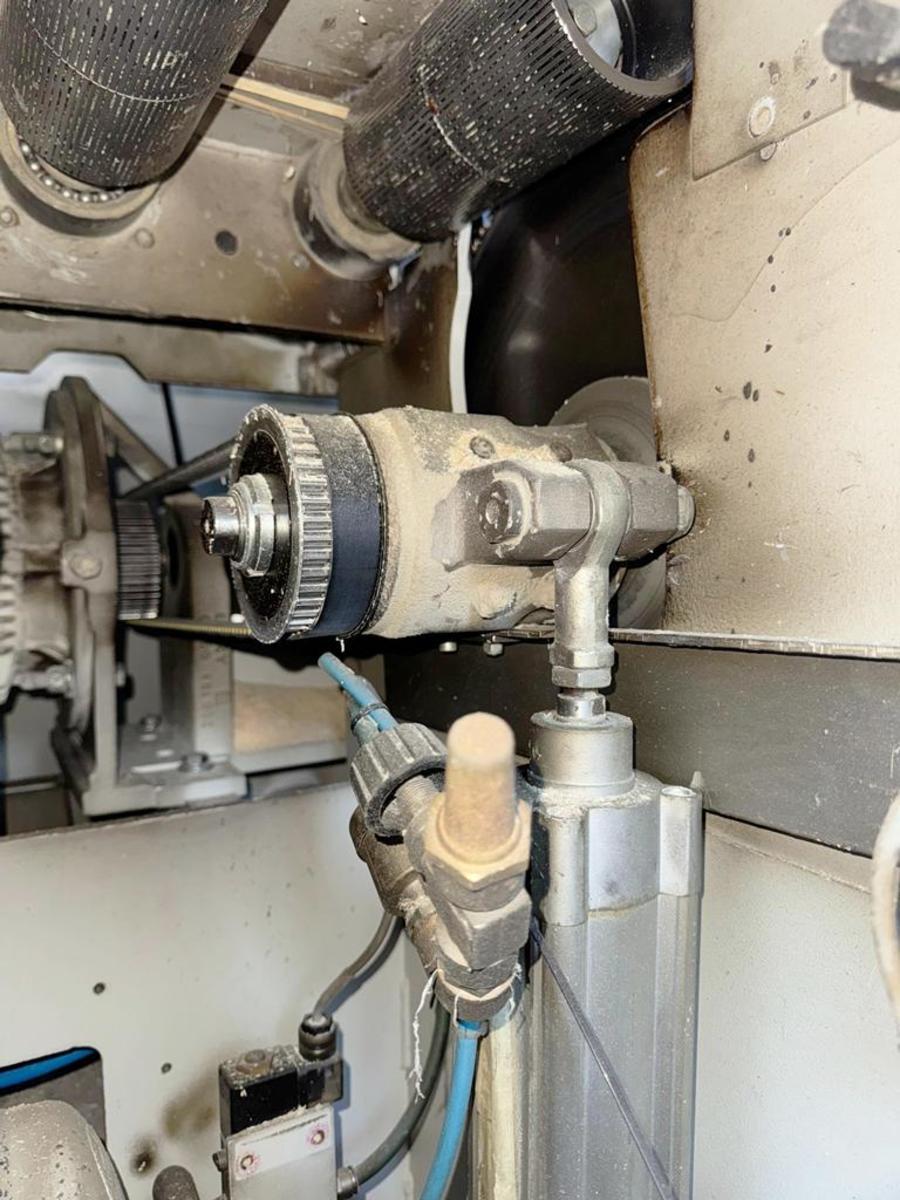

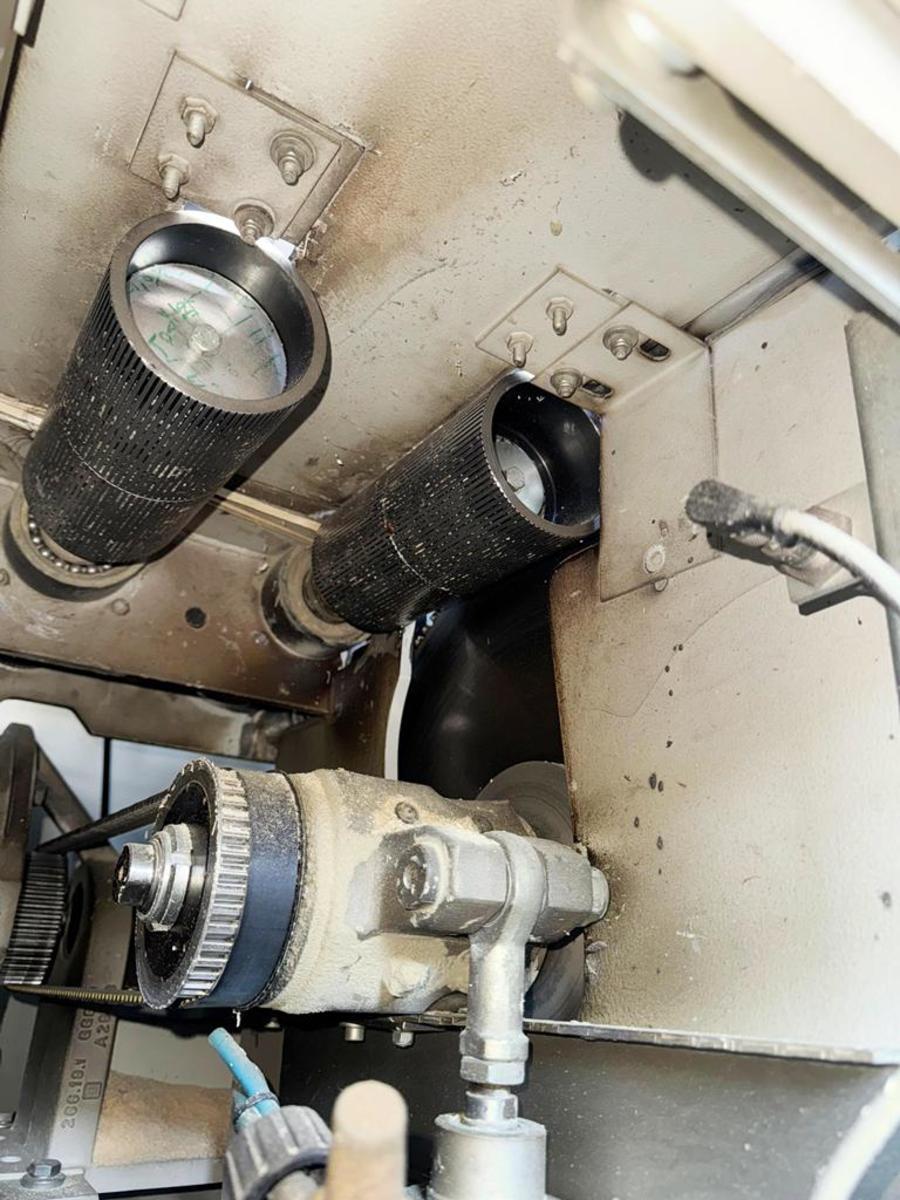

The infeed table was not used by the previous owner. Two feed rollers were installed for feeding the material. The conveyor table is included, only the rubber conveyor belt is missing.

Sale on behalf of customer, ex location near 39100 Bolzano (Italy), without dismantling, without transport and assembly
Dismantling, loading, and transport by us optionally available

Subject to errors in the description and price

To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Photos and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or shipping

Terms of delivery: Ex location

Our general terms and conditions apply, available online at www.kauz-maschinen.de

Please pay particular attention to Article 9 regarding complaints and returns!
