No. 3281

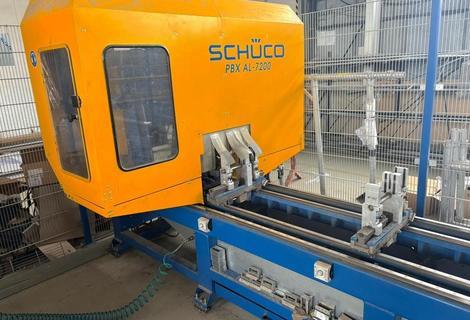

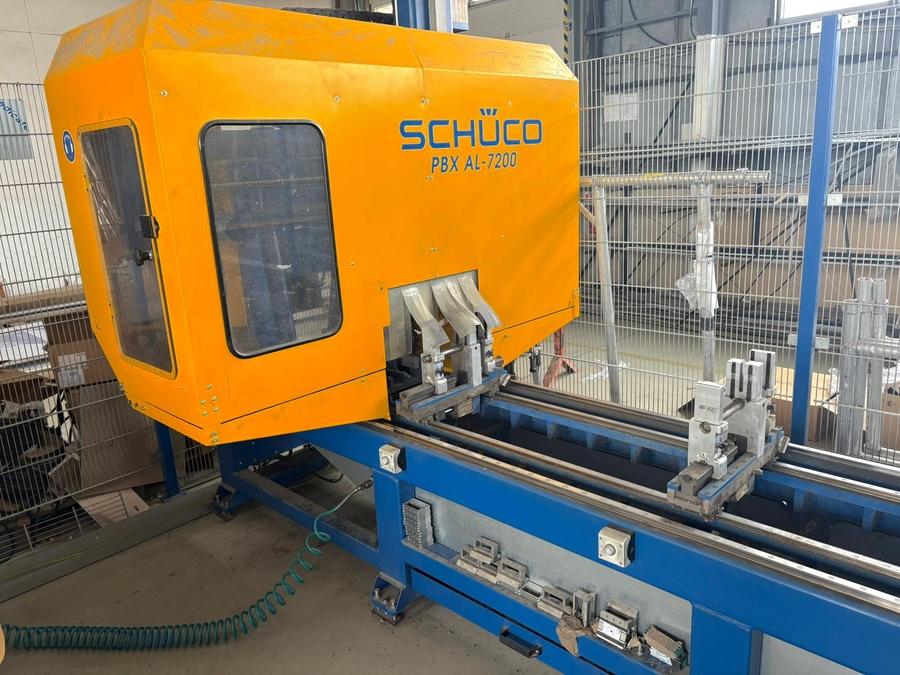

CNC profile machining center Schüco PBX AL 7200

Used, year of construction 2009

According to our customer / the previous owner, the machine is fully functional and can be viewed on site

4-axis CNC machining centre for milling and drilling thin-walled aluminium profiles and structural steel profiles made of steel grades S 185 to S 275
Suitable for window and door profiles
Max. profile wall thickness 5 mm
Max. depth of cut in aluminium 2 - 3 mm
Max. depth of cut in steel 1.5 - 2 mm

Max. profile machining length 7200 mm
X-axis travel 7530 mm
Y-axis travel 1180 mm
Z-axis travel 660 mm
X-axis travel speed max. 60 m/min
Y- and Z-axis travel speed max. 30 m/min
A-axis rotational speed max. 17 rpm
A-axis rotation angle max. 180°
Machining on three sides of the profile
Positioning accuracy +- 0.1 mm / 1000 mm

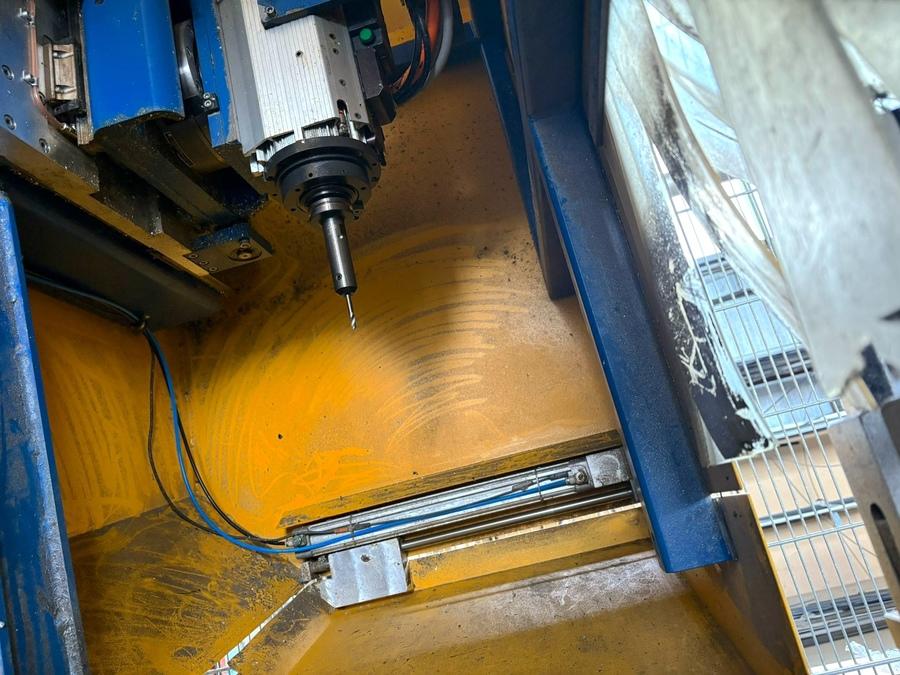

Spindle power 5.5 kW at 6870 rpm
Spindle speed max. 18000 rpm
Tool holder SK 30

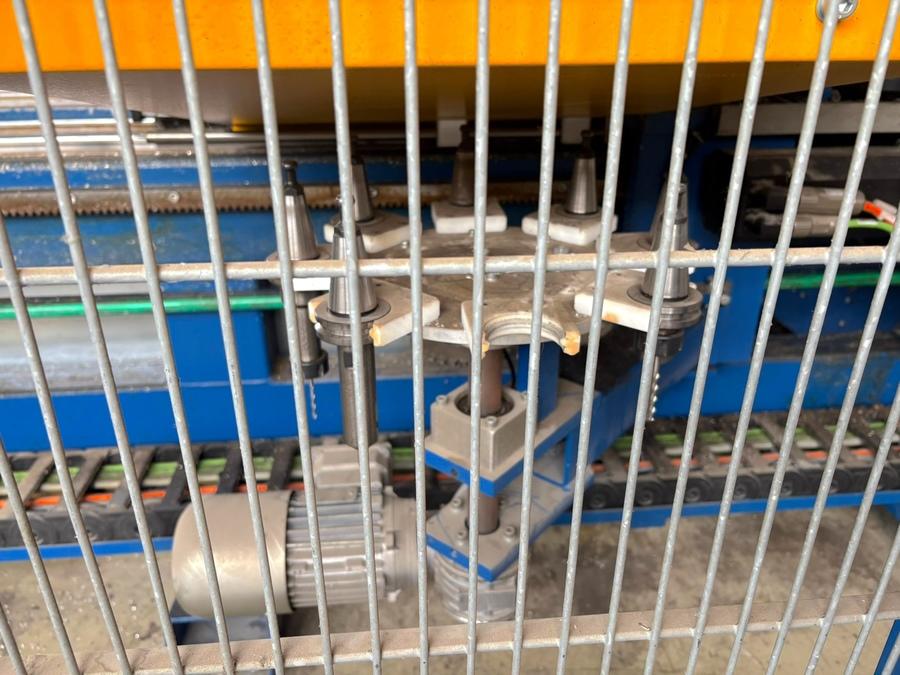

8-position tool magazine
Tool change time approx. 12 - 14 s

8 pneumatic clamping blocks with automatic positioning
Double clamping unit for holding two profiles
Front clamping position max. 250 x 200 mm WH
Rear clamping position max. 120 x 200 mm WH

CNC control Schüco CAM and SchüCal

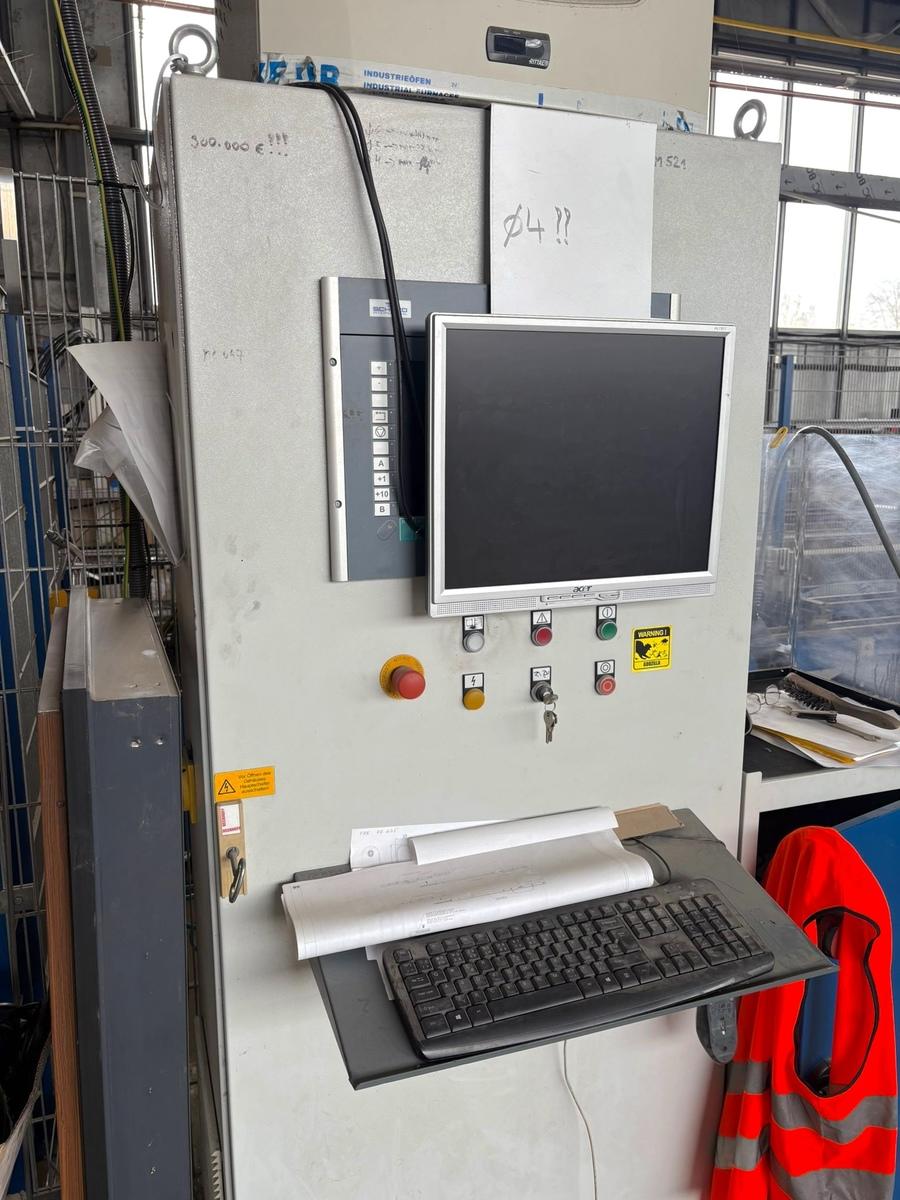

PC operator station with monitor and keyboard

Electrical connection 400 V / 50 Hz / 3 phases
Rated current consumption 35 A
Required on-site fuse protection 50 A per phase

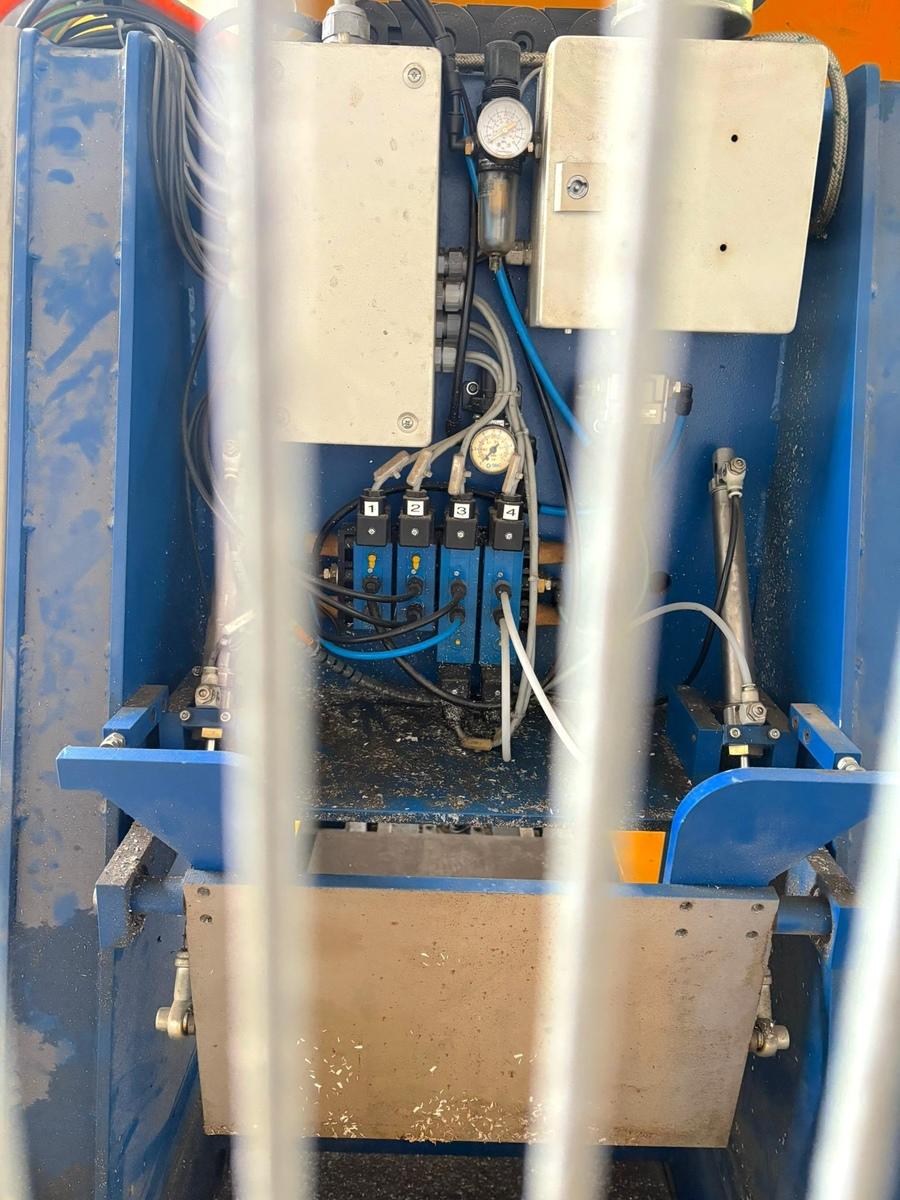

Pneumatic operating pressure 6 bar
Minimum supply pressure 4.5 bar
Max. short-term air flow rate 150 l/min

CE marking
Technical documentation available as PDF file

Weight approx. 3450 kg

Sale on behalf of customer, ex location near 080 01 Presov (Slovakia), without dismantling, without transport and assembly
Dismantling, loading, and transport by us optionally available

Subject to errors in the description and price

To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Photos and videos serve as examples and do not represent the actual scope of delivery
