No. 3268

Cutting and machining center Schirmer BAZ 1000-G6 / VU “Basic”

Used, year of construction 2012

Consisting of:
- Cutting and machining center Schirmer BAZ 1000-G6 / VU “Basic”
- Automatic steel cutting machine Schirmer SZA 450
- Buffer screw station Schirmer
- Bar machining center Schirmer SBZ I

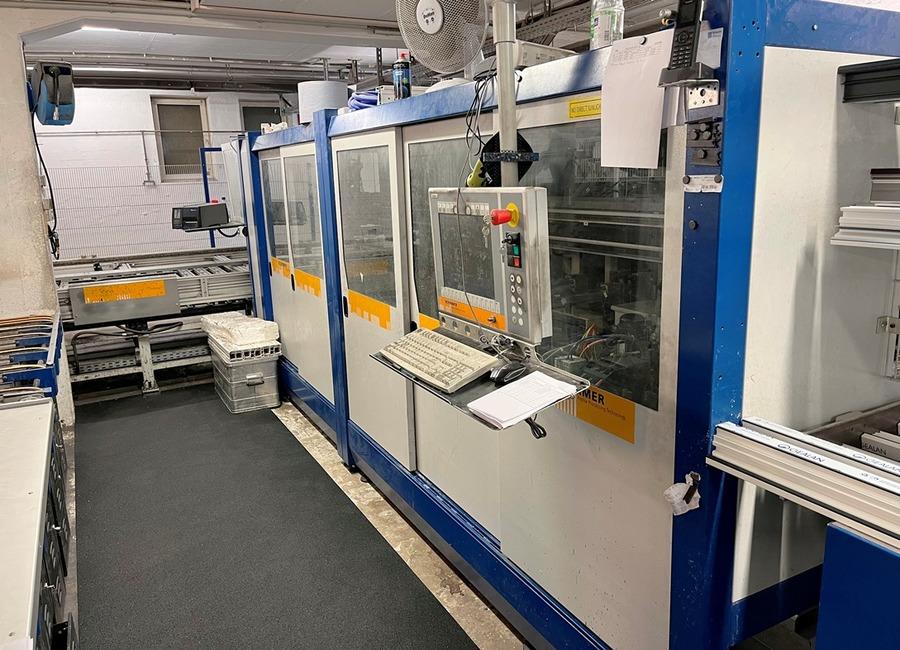

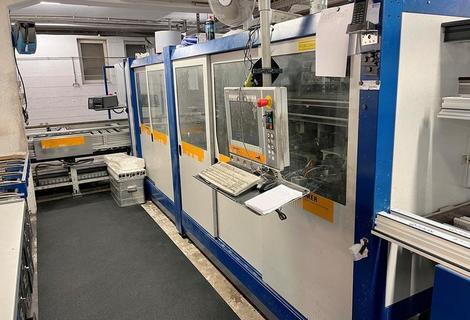

Cutting and machining center Schirmer BAZ 1000-G6 / VU “Basic”
- Cutting length 300 - 3900 mm
- Automatic feed magazine for 9 profiles up to 6500 mm in length
- Automatic transfer station
- Loading device for PVC profiles up to 6500 mm in length with NC-positioned gripping tongs, positioning speed up to 150 m/min
- Profile length measuring device incl. optimization software
- Automatically adjustable profile guides
- Machining station designed as a G-module “Ultra Speed”

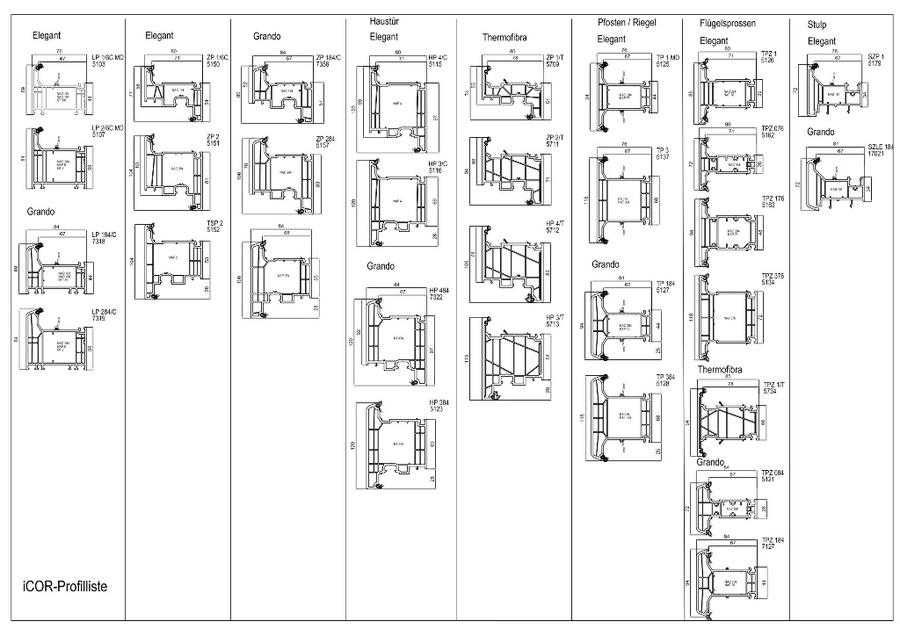

Machining operations on the PVC profile:
- Drainage and ventilation slots/holes in the frame, sash, and mullion profiles; handle olive holes for front doors; lock plate markings; lock case cutouts
- Height measuring device for detecting profile tolerances
- Seal cutting device
- VU sawing unit with dual sawing unit 2x 45°
- Sawing unit in standard configuration with 1 sawing unit, swivel range +45° to -45°
- Conveyor belt for waste removal
- NC-controlled gripping tongs for bar removal, positioning speed up to 180 m/min
- PC machine control: 7-slot ATX industrial PC, Microsoft Windows XP Professional, software: TwinCAT NCI

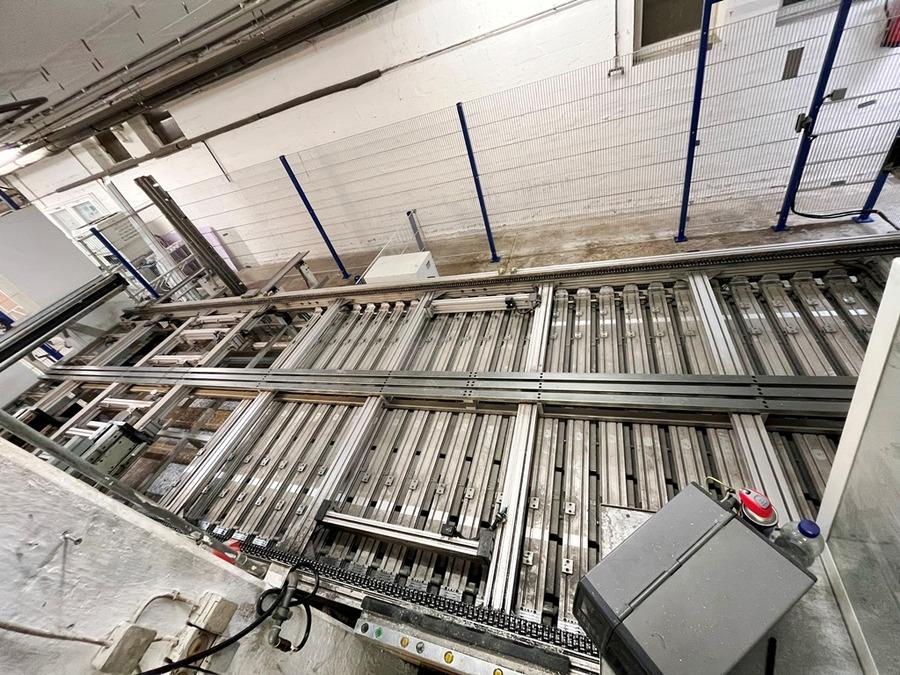

- Horizontal recirculating buffer for transporting profiles to the steel insertion station and screwing station for the steel insertion station with 8 insertion slots
- Monitor for displaying steel lengths
- Automatic label printer

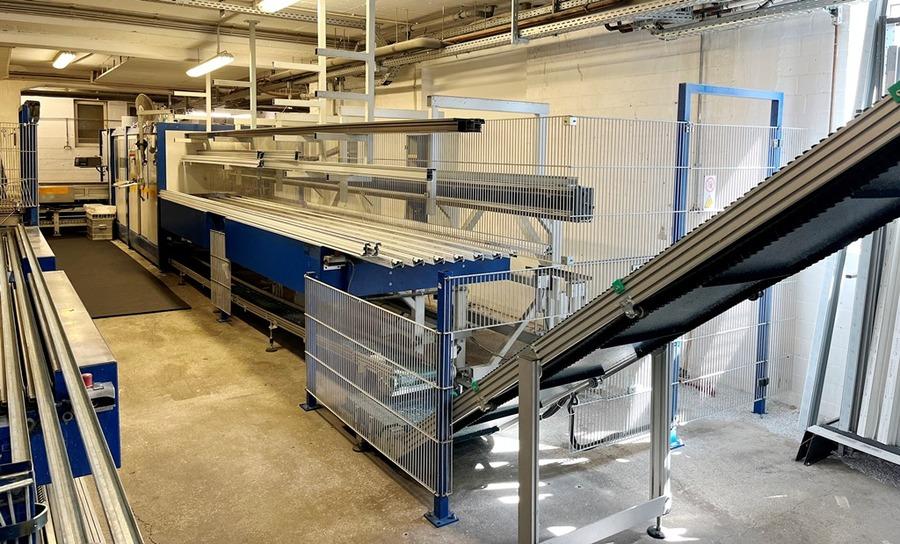

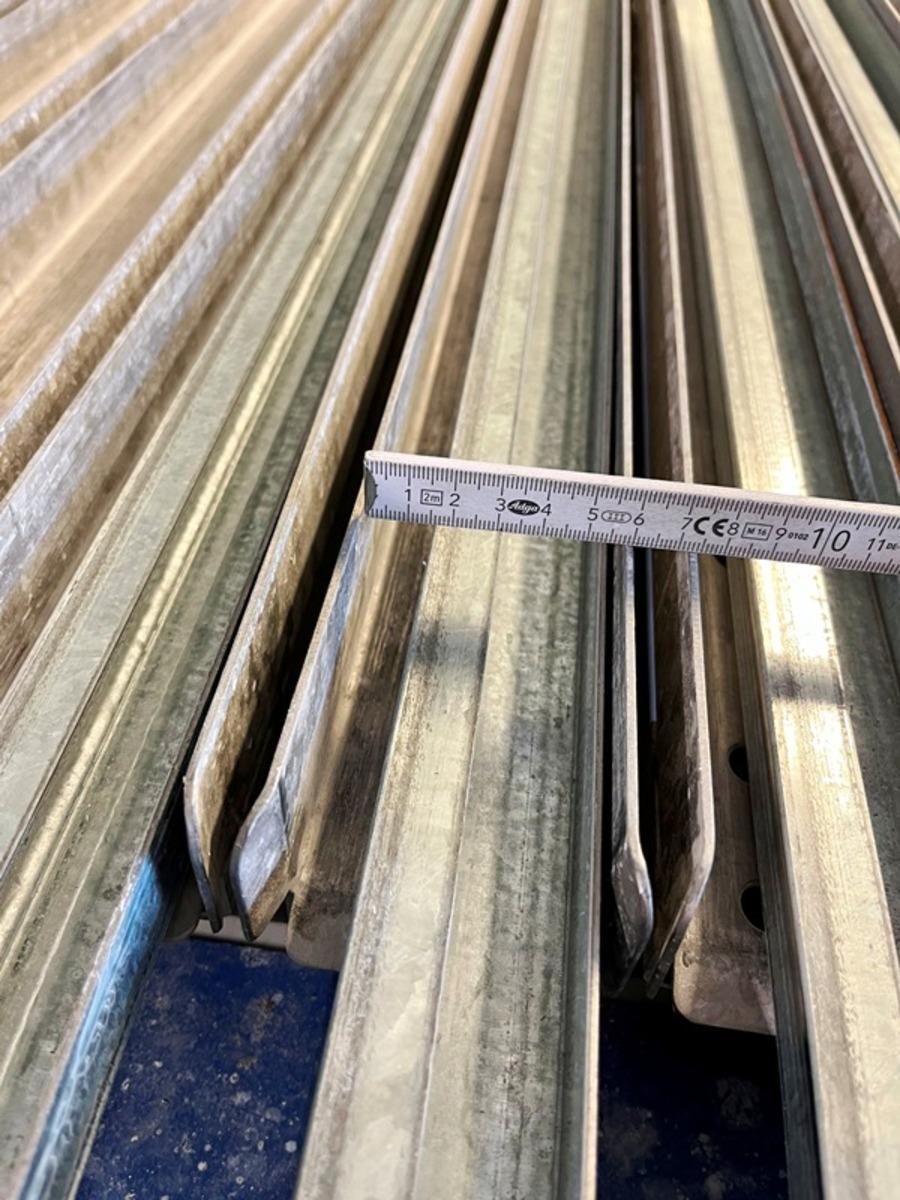

Automatic steel cutting machine Schirmer SZA 450

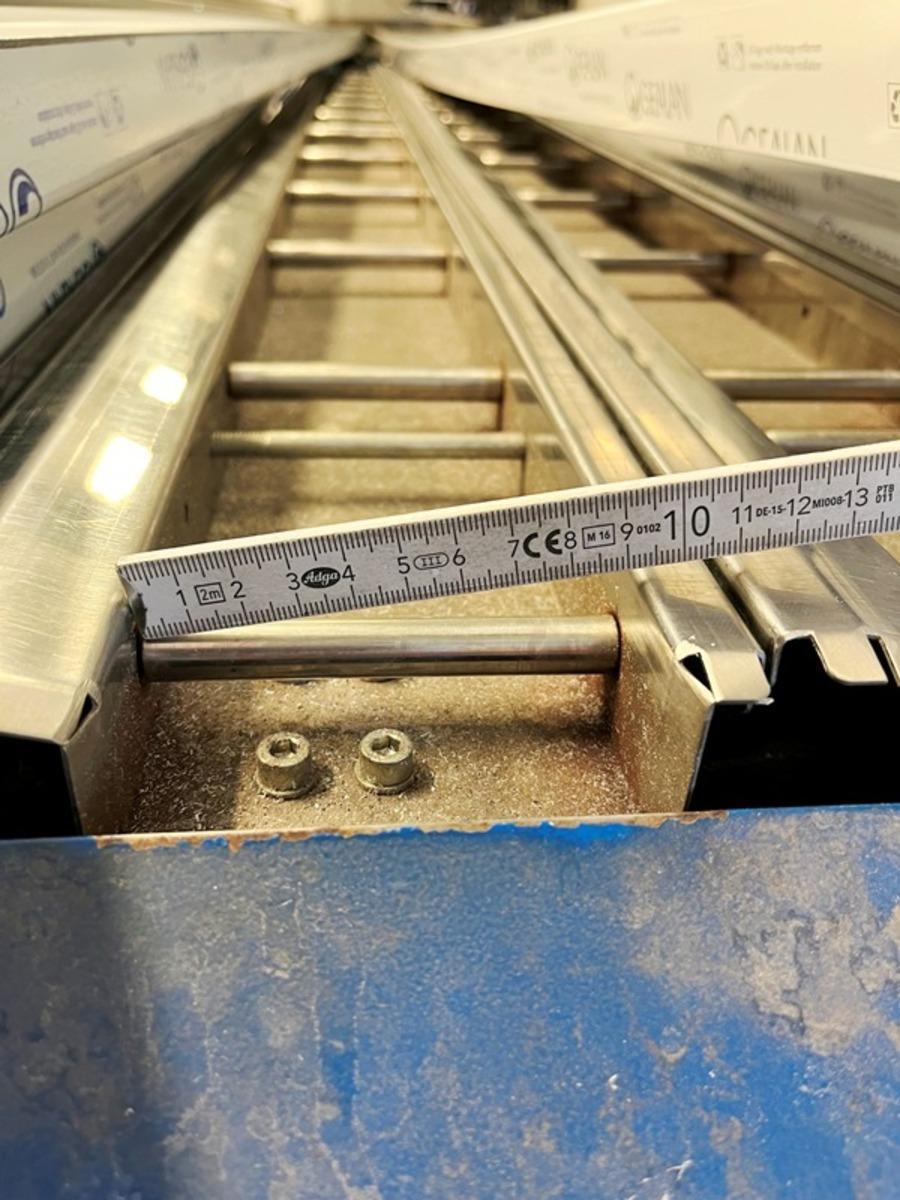

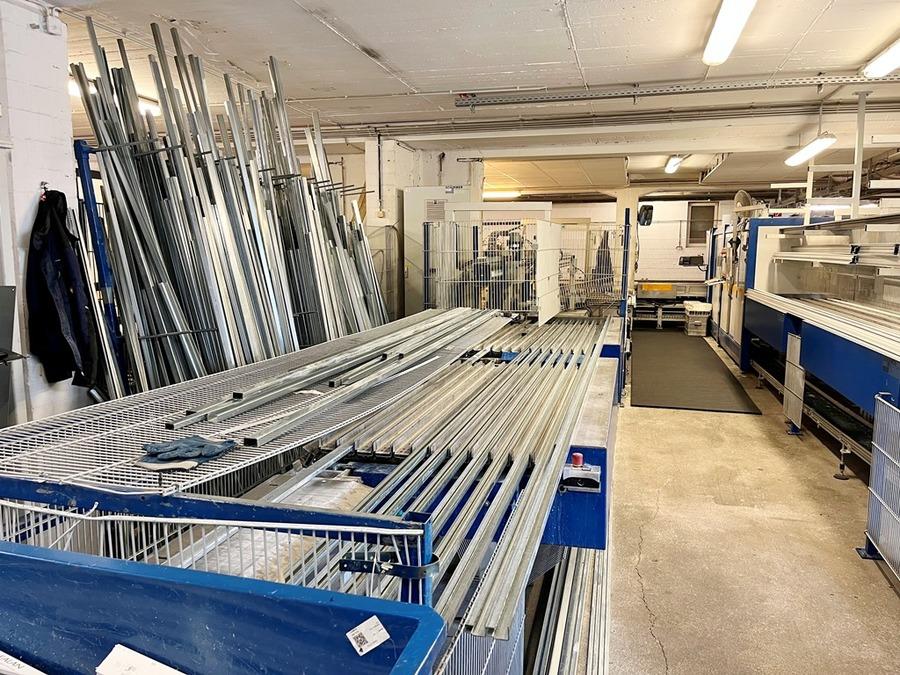

- Automatic feed magazine, max. profile length 6000 mm, profile width 25 - 50 mm, profile height 15 - 60 mm, wall thickness max. 4 mm
- Insertion device
- Standard sawing unit for 90° cuts
- Automatic bar discharge
- Belt conveyor
- Extraction device
- Steel scrap processing
- Steel length measurement in the steel loading magazine

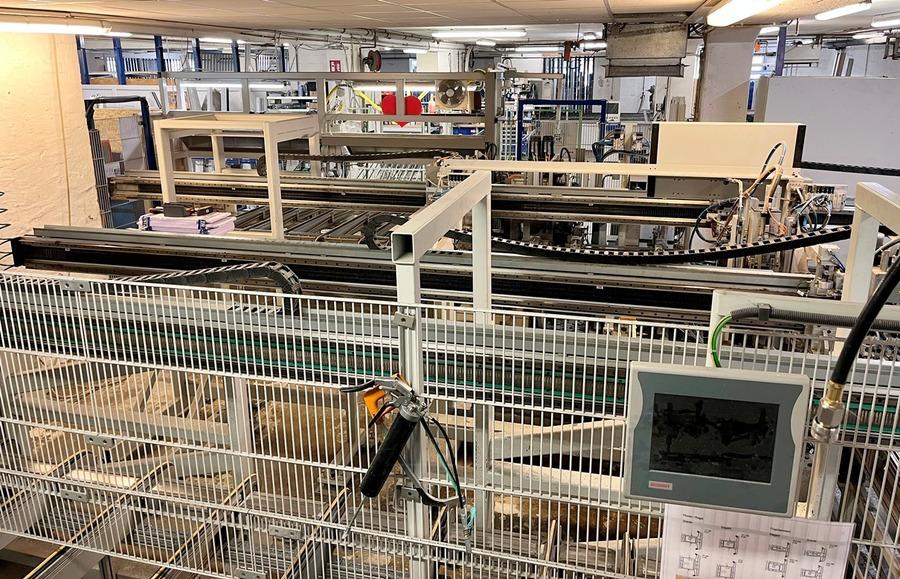

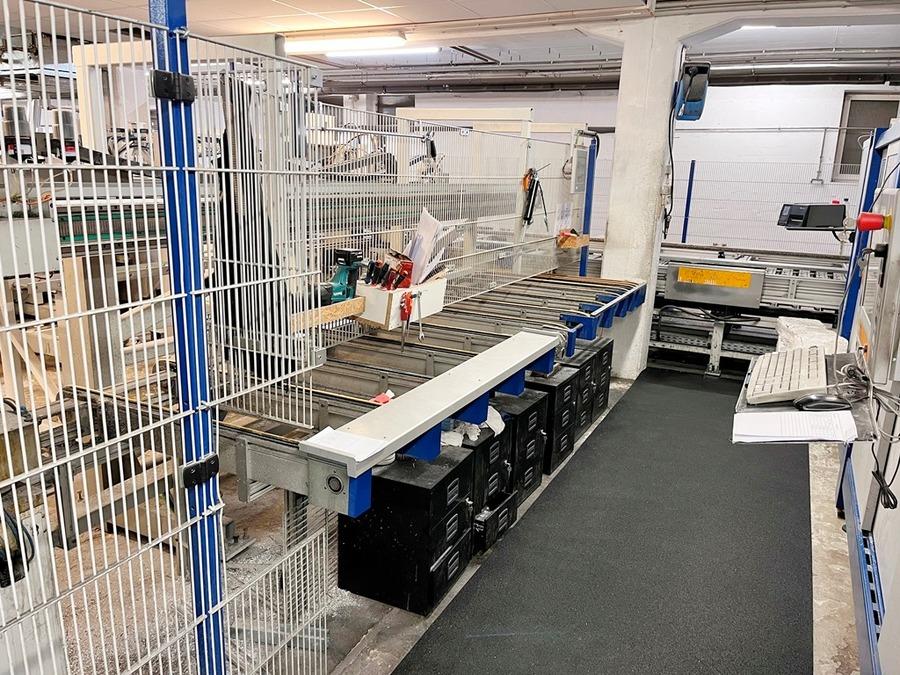

Buffer screw station Schirmer
- Feeding device for PVC profiles up to 3900 mm in length
- Automatically adjustable profile guides
- Screw station
- Steel feeding fingers for reinforcement profiles up to 200 mm insertion depth

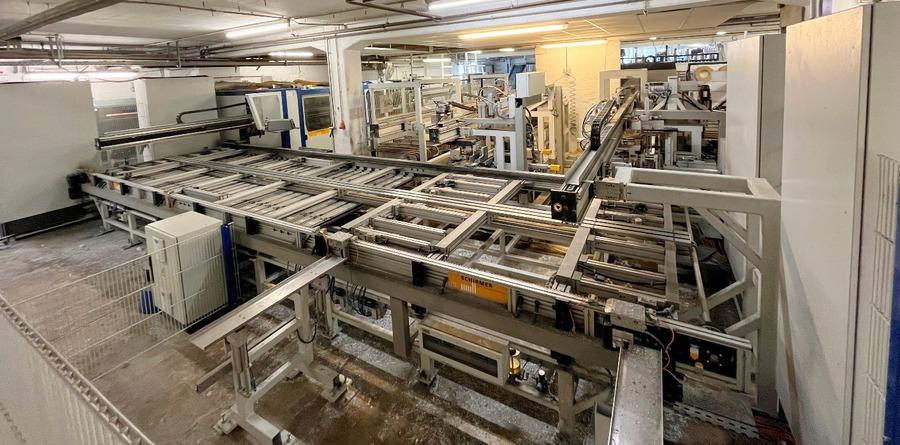

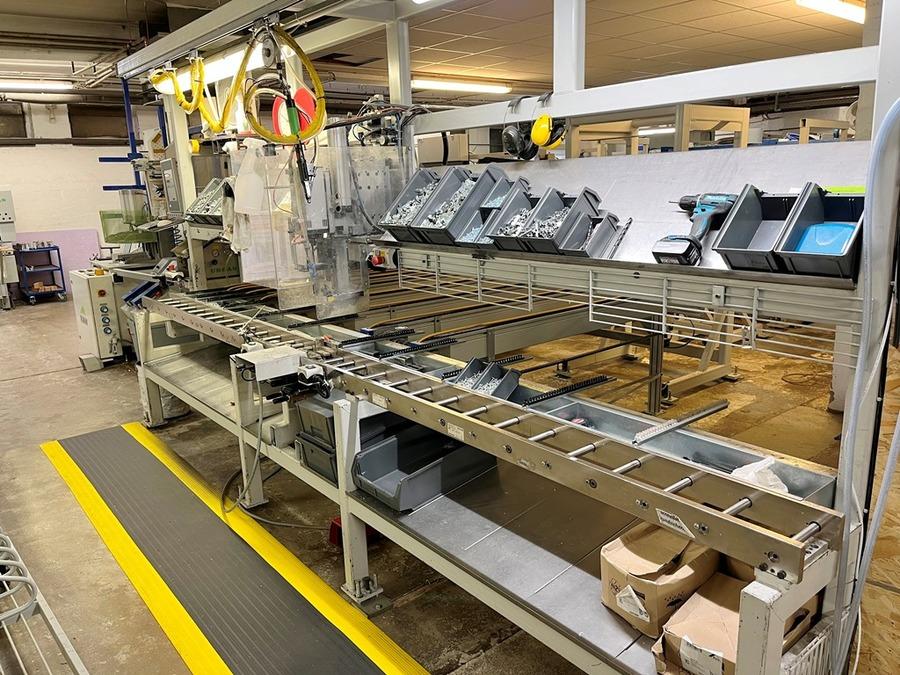

Bar machining center Schirmer SBZ I
- Feeding device for PVC profiles up to 3900 mm in length, speed up to 180 m/min
- Automatically adjustable profile guides
- Measuring probe for automatic determination of the zero point at the start of the profile
- Drilling station with 4-axis CNC control, 2 vertical axes, 1 horizontal axis, and 1 axis for X-feed
- NC-controlled gripping tongs for bar transport, positioning speed up to 180 m/min
- Special-design belt conveyor for cross-feed
- Sash visualization software including monitor
- Screwing station with screw feeder
- Guide rail with balancer for bar screwing unit
- Bar screwing unit with automatic screw feed

Machine capacity:
Approx. 120 window units 1400 x 1500 mm/8 hours
If the machine is expanded with an additional screwing unit at the buffer screwing station, the capacity increases to approx. 160 units/8 hours
